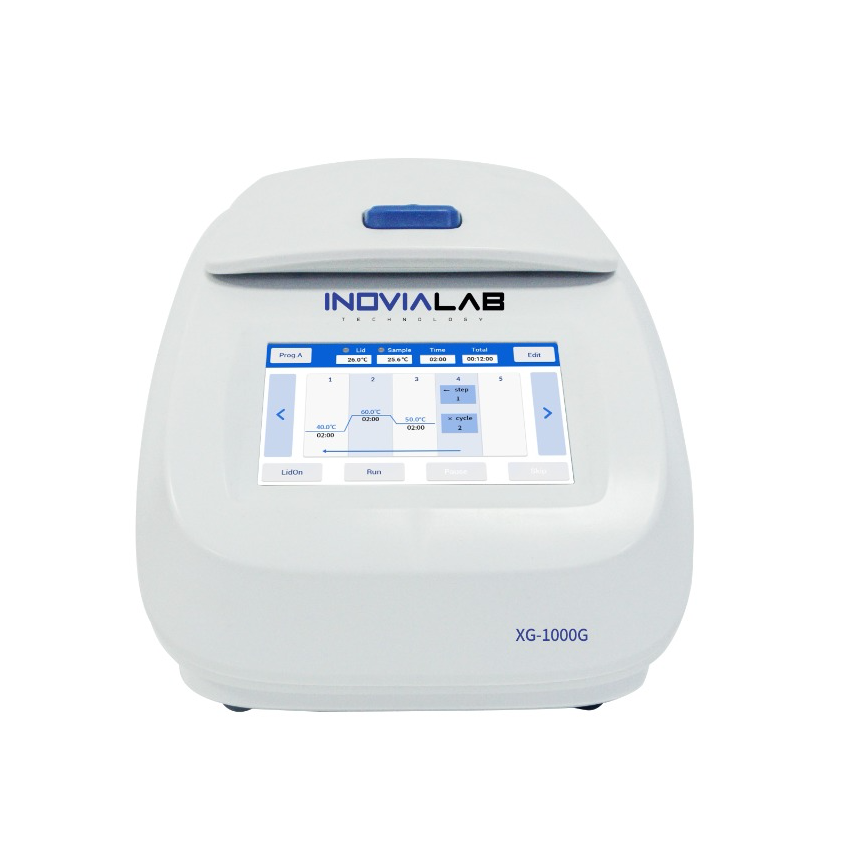

Features of XG-1000G
Definition
This gradient PCR is used in molecular biology, medical, food, genetic testing, etc. Ideal for thermal cycling and protocol optimization in fields.
- Excellent amplification thanks to high-quality semiconductor
- Industrial grade working system, can work 24/7.
- 30°C gradient range, ideal for protocol optimization
- Thanks to the 5" touch screen, easy program editing, operation and saving are provided.
- Data saved with USB flash memory is exported.
- Small size and ergonomic design
- Extremely quiet
- High precise temperature with good homogeneity, rapid heating and cooling, utilizes advanced thermoelectric cooling and PID technologies.
Features of XG-1000GP
Definition
XG-1000GP is an upgraded generation thermal cycler based on our XG-1000G; Advanced Peltier technology provides accurate temperature control and allows cycles to reach up to one million.
It is an ideal thermal cycler for life science research in most laboratories.
- Compact design that takes up little space
- Correct temperature thanks to 6 high quality peltiers
- Good temperature uniformity reduces edge effect
- New generation Peltier technology, maximum heating rate 6°C/s
- 1024x768 pixels, 8" color touch screen, automatic recovery in case of power failure
- Gradient range 30°C
Techincal Specifications ;
|
Model |
XG-1000G |
XG-1000GP |
|
Capacity |
96x0.2mL 0.2mL Microtubes, 8x0.2mL Tubes Strips, 96x0.2mL PCR Plate (without/semi skirted) |
|
|
Number of Peltier |
3 |
6 |
|
Block Temperature Range |
4-99.9°C |
0-99.9°C |
|
Block Temperature Uniformity |
≤±0.25°C |
≤±0.25°C |
|
Block Temperature Accuracy |
≤±0.2°C |
≤±0.2°C |
|
Heating Lid Temperature Range |
30 - 105°C |
30 - 105°C |
|
Heating Up Rate (Max.) |
5°C/s |
6°C/s |
|
Cooling Down Rate (Max.) |
4.5°C/s |
5°C/s |
|
Adjustable Range of Heating Up/Down Cooling |
0.1 - 5°C/s |
0.1 - 6°C/s |
|
Temperature Display Accuracy |
0.1°C |
0.1°C |
|
Temperature Control Ways |
Block / Tube |
Block / Tube |
|
Gradient Temperatura Range |
30 - 99.9°C |
30 - 99.9°C |
|
Gradient |
Max. 30°C |
Max. 30°C |
|
Gradient Temperature Accuracy |
≤±0.3°C |
≤±0.3°C |
|
Numbers of Gradient |
12 |
12 |
|
Max. Steps |
30 |
30 |
|
Max. Cycles |
99 |
99 |
|
Programs Stored |
10000+ |
10000+ |
|
Timer Increasing/Decreasing |
-599s - 599s |
-599s - 599s |
|
Temperature Incresing/Decreasing |
-9.9°C - 9.9°C |
-9.9°C - 9.9°C |
|
Power Failure Recovery & Pause Function |
Yes |
Yes |
|
Touchdown PCR & Long PCR |
Yes |
Yes |
|
16°C Temperature Holding Function |
Infinite Duration |
Infinite Duration |
|
LCD Display |
Touch Screen Display |
Touch Screen Display |
|
Operation System |
Linux |
Linux |
|
Touch Screen Type |
Capacitive |
Capacitive |
|
Communication Port |
USB 2.0 |
USB 2.0 |
|
Power Supply |
100/240V, 50/60Hz |
100/240V, 50/60Hz, 700W |
|
Dimension (WxDxH) |
200x300x170mm |
400x260x228mm |
|
Net Weight |
4.5 Kg |
8.5 Kg |
