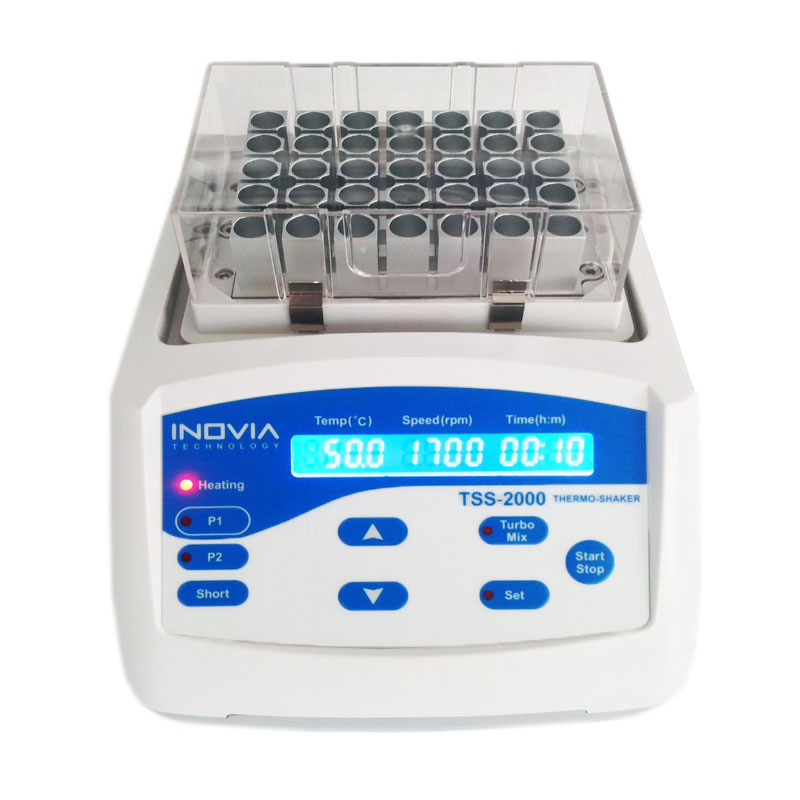

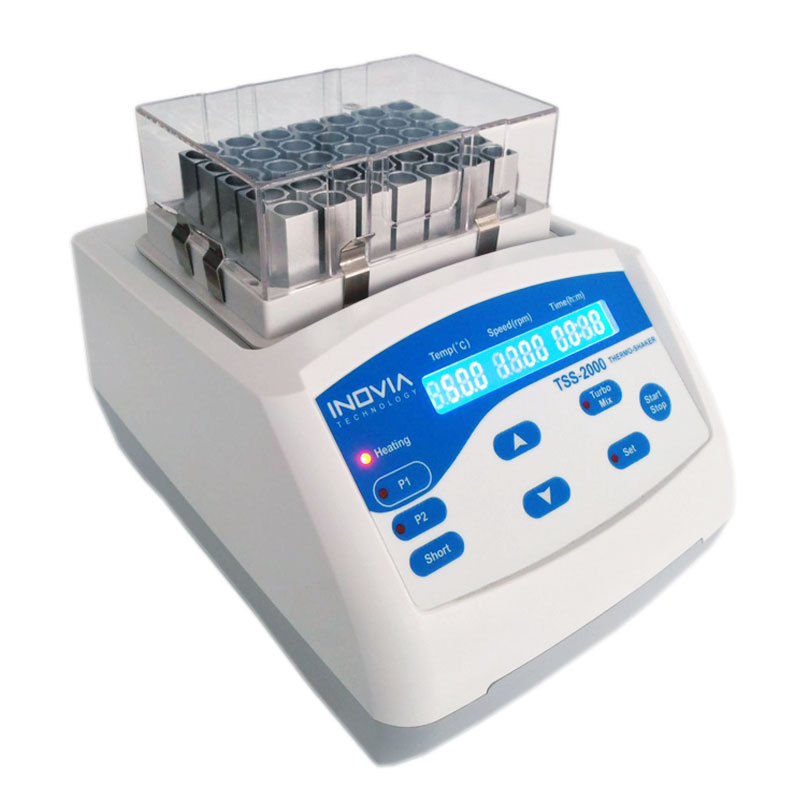

The TSS Series Turbo Thermo Shakers are more precise than other thermo-shaker devices on the market!
The TSS-2000/3000 Turbo Thermo Shakers not only can blend various trace tube, PCR board, deep hole plate and microporous board laboratory commonly used consumables, still have various modules to heat the function of incubation.
Features :
1. Thermoshaker for microplates, tubes, and glass vials
2. Fast shaking and mixing up to 3,000rpm (For TSS-2000)
3. Perfectly controlled 3-dimensional mixing prevents spilling and lid wetting
4. Highly accurate processing and Anti-Vibration Technology eliminate vibrations for a relaxed working environment
5. 2 programmable soft keys, integrated vortex and short mix functions
6. Very small, light, efficient and quiet
7. 10 types aluminum blocks for user choosing
8. Adapter Plates;
Microplates :
- 96-, 384-, and 1536-well microplates/deepwell plates/PCR plates

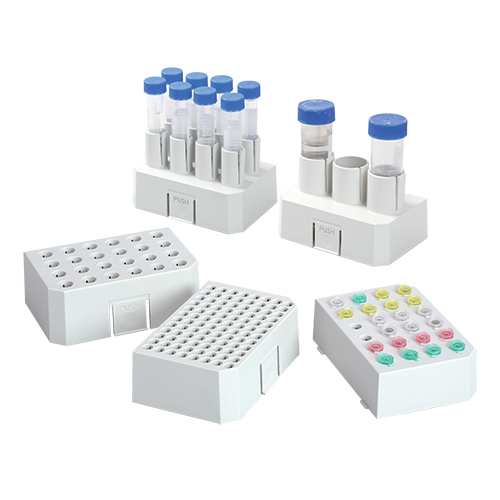

Holder :
- 0.2ml PCR tubes holder
- 0.5ml tubes holder
- 1.5/2.0ml tubes holder
- 15ml Micro tubes holder,
- 50ml Micro tubes holder
Technical Specifications;
| MODEL | TSS-2000 | TSS-3000 |
| Mixing Speed Range (rpm)(Turbo Mix) | 300 - 3000 | 300 - 2000 |
| Mixing Speed Range (rpm)(Normal Mix) | 300-1700 | |
| Mixing Orbit Range | 2mm (Horizontal) | 3mm (Horizontal) |
| Temperature Range | RT+5°C - 100°C | |
| Timing Range | 1min - 99h59min | |
| Temperature Accuracy | ±0.25°C (≤37°C) ±0.5°C (≤95°C) |
|
| Temperature Display Accuracy | ±0.1°C | |
| Heating Time (20°C to 100°C) | ≤12min | |
| Power Supply | AC100-240V 150W 5A | |
| Dimensions (mm) | 240x170x165 | |
| Ağırlık | 6 kg | |

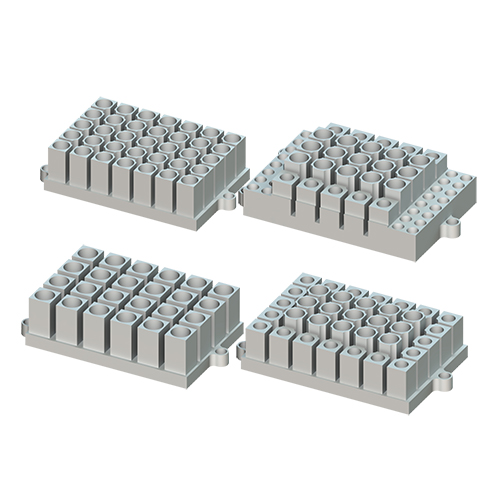

Block Types;
| Code | Type | Description |
| AS-02051-01 | A-200 | 96 x 0.2ml |
| AS-02051-02 | B-200 | 54 x 0.5ml |
| AS-02051-03 | C-200 | 35 x 1.5ml |
| AS-02051-04 | D-200 | 35 x 2.0ml |
| AS-02051-05 | E-200 | 15 x 1.5ml+20 x 0.5ml |
| AS-02051-06 | F-200 | 24 x Dia.≤φ12mm tubes |
| AS-02051-07 | G-200 | 32 x 0.2ml+25 x 1.5ml |
| AS-02051-08 | H-200 | 32 x 0.2ml+10 x 0.5ml+15 x 1.5ml |
| AS-02051-09 | I-200 | 103 x 67 x 30mm Bath Block |
| AS-02051-10 | J-200 | 96 x 0.2ml Microplate |
| AS-02031-01 | MIX-A | 0.2ml PCR Tube Holder |
| AS-02031-02 | MIX-B | 0.5ml Tube Holder |
| AS-02031-03 | MIX-C | 1.5/2.0ml Tube Holder |
| AS-02031-04 | MIX-D | 8 x 15ml Tube Holder |
| AS-02031-05 | MIX-E | 3 x 50ml Tube Holder |
