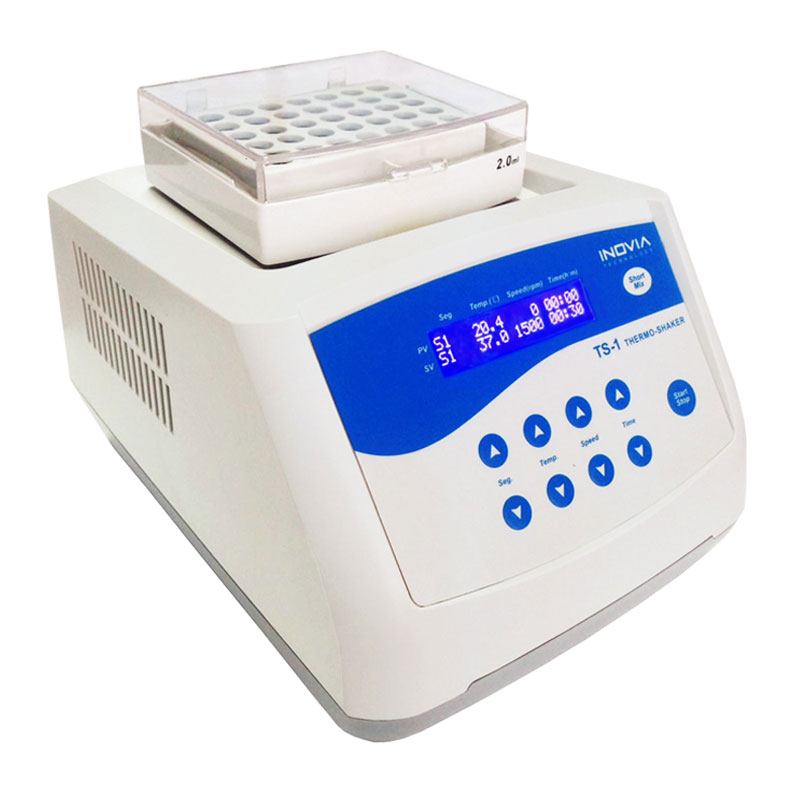

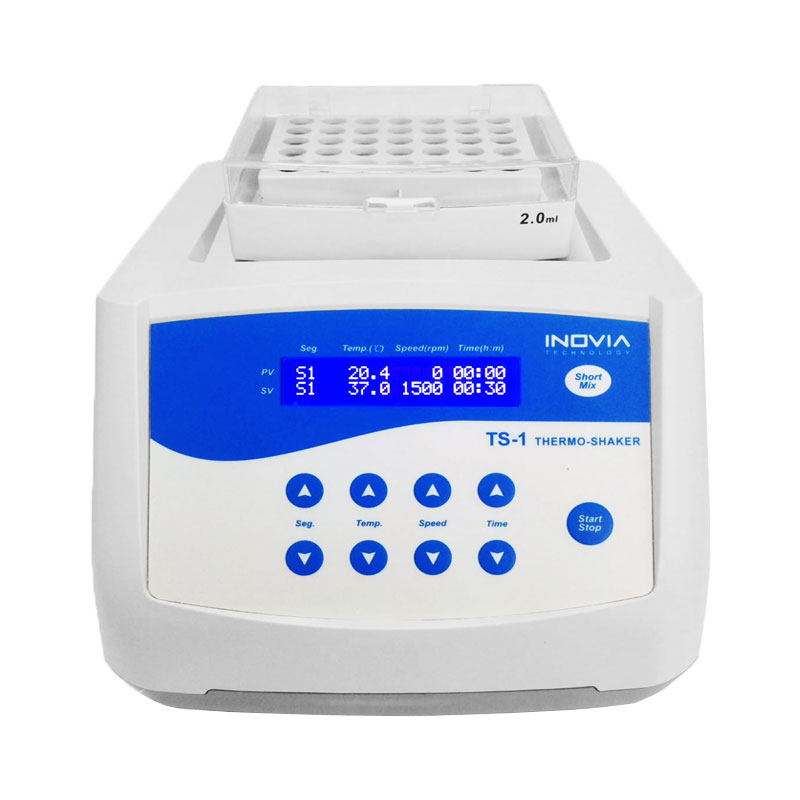

The CTS-1 and TS-1 model Thermo Shakers for Micro Tubes is an ideal instrument for intensive mixing of samples in the reguated temperature conditions.
Mixing and heating modes can be used both simultaneously and independently i.e, the device can work as shaker and as a thermostat.The Main body of the Mixing Block can be used with different kinds of blocks.
CTS-1 and TS-1 is applicable for DNA analysis, extraction of lipids and other cell components. DNA library creation, PCR amplification, pre-denuturation in electrophoresis, serum solidification etc.
Features;
1. As it is equipped with various optional mixing blocks, the instrument can adapt to different tubes & wells to cope with experimental needs. It is easy to replace the metal blocks and is very simple to clean and sterilize. Customized blocks are available to suit your specific demands.
2. LCD display. It easy to setup and use.
3. Simultaneous display of set and actual time temperature and speed.
4. Over heating protection device ensures safety & reliability.
5. Temperature can be calibrated to meet user's needs.
6. Beep-signal and stop, after program completion.
7. Can be produced for OEM customers.
The normal operating condition;
- Ambient Temperature: 5°C – 30°C
- The Relative Humidity: ≤70%
- Power Supply: 200-240V – 1.5A 50/60Hz
Technical Specifications;
| MODEL | TS-1 | CTS-1 |
| Mixing Rate | 200 - 1500 rpm | |
| Orbit | 2mm | |
| Temperature Control Range | RT+5°C - 100°C | 0°C - 100°C at Room Temp. ≤20°C 4°C - 100°C at Room Temp. ≤25°C 10°C - 100°C at Room Temp. ≤30°C |
| Timing Range | 1min - 99h59min | |
| Accuracy of the Temperature | ≤0.5°C | |
| Heating Time (at RT 25°C) | ≤12min (From 40°C to 100°C) | ≤15min (From 20°C to 100°C) |
| Cooling Time | N/A | ≤30min (From RT to RT -20°C) |
| Power Supply | AC100-120V or AC200-240V - 50/60Hz | |
| Fuse | 250V 4.0A & 3.0A Φ5x20 | 250V 3.0A Φ5x20 |
| Dimension (DxWxH) | 300x220x195mm | 300x225x195mm |
| Net Weight | 7 kg | 8.5 kg |

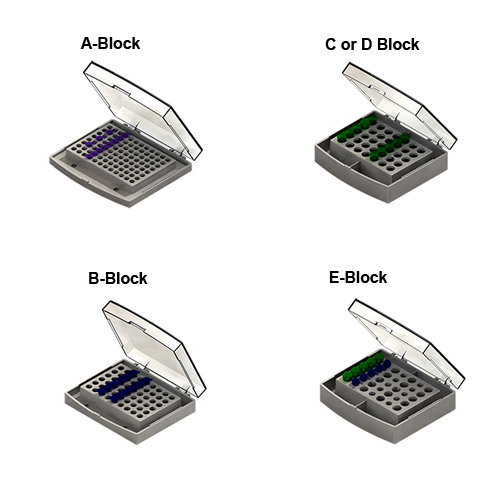

Block Types;
| Type | Capacity | Max. Temperature | Max. Speed (RPM) |
| A-Block | 96x0.2ml | 100°C | 1500 |
| B-Block | 54 x 0.5ml | 100°C | 1500 |
| C-Block | 35 x 1.5ml | 100°C | 1500 |
| D-Block | 35 x 2.0ml | 100°C | 1500 |
| E-Block | 15 x 0.5ml + 20 x 1.5ml | 100°C | 1500 |
| F-Block | 24 x Diameter ≤12mm | 100°C | 1200 |
| G-Block | 12 x 15ml | 100°C | 750 |
| H-Block | 6 x 50ml | 100°C | 750 |
| I-Block | 103 x 67 x 30mm Bath Block | 100°C | 1500 |
| J-Block | 96 x 0.2ml Microplate | 100°C | 1500 |
| K-Block | 24 x 5ml | 100°C | 1200 |
| L-Block | 96-Deep Well Plate | 80°C | 800 |
| M-Block | 15 x 5ml Eppendorf Tubes | 100°C | 1200 |
