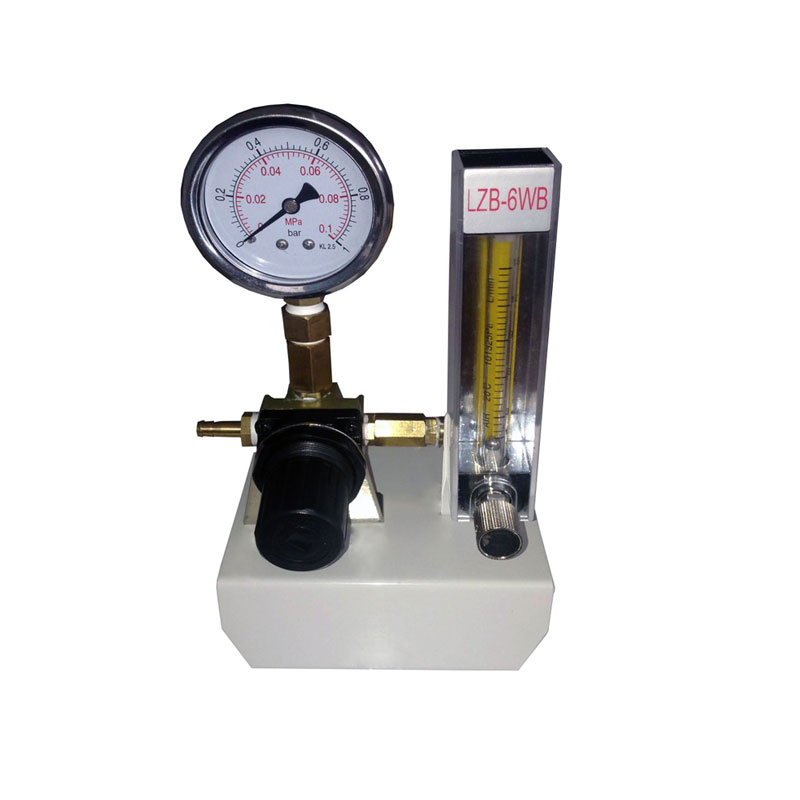

The instrument consist of a base and stand assembly, sample holder and gas distribution system. Test tubes are hold in block. The gas at 0.02MPa passes through the distribution manifold. Depending on the test-tube size and solvent volume they can be individually raised or lowered to the correct height. Needles or glass pipets blow gas onto the surface of the solution resulting in rapid evaporation of the solvent. All materials used are laboratory quality and can withstand contact with organic solvents. Acid resistant models are available for corrosive applications.
Features:
High precision and wide range of temperature control,
Blowing a large number of samples at one time,
Blowing each sample independently,
Easy operation, safe and reliable to use.
Technical Specifications:
Normal Operating Condition:
- Ambient Temperature 5°C - 30°C
- The Relative Humidity: ≤70%
- Power Supply: AC220V - 50/60 Hz

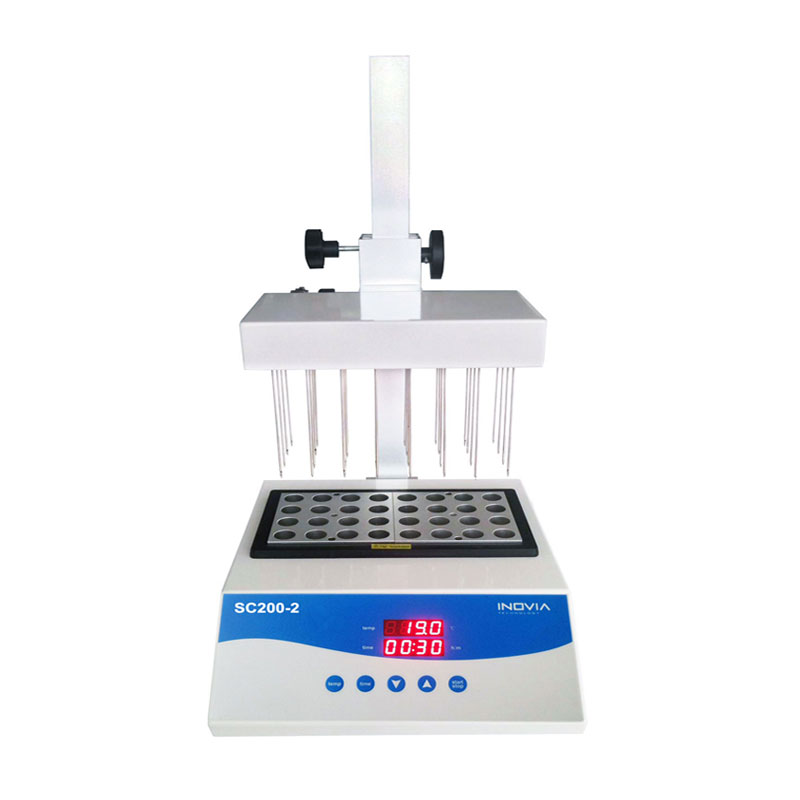

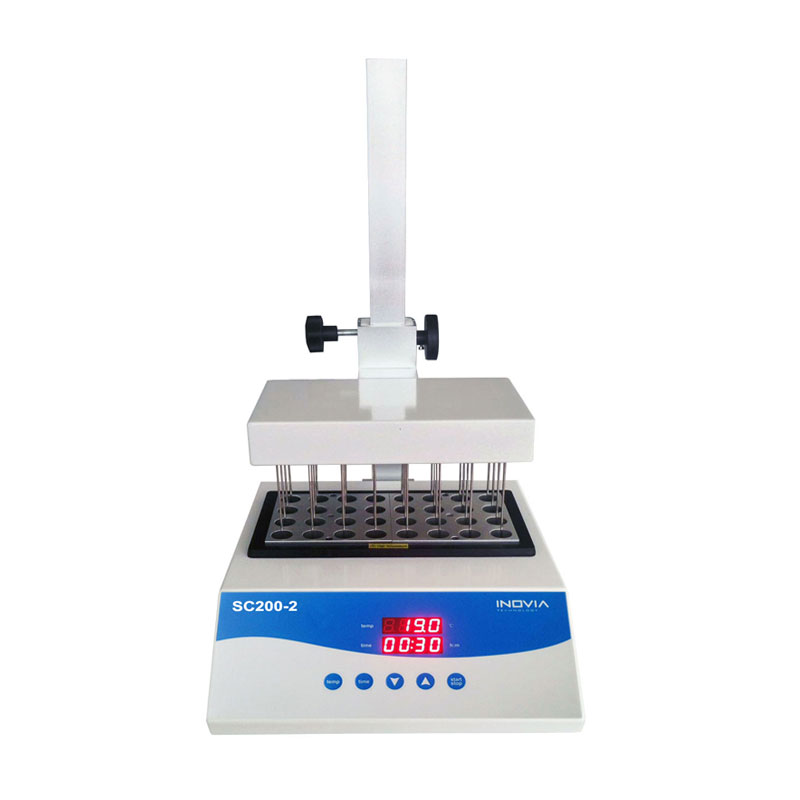

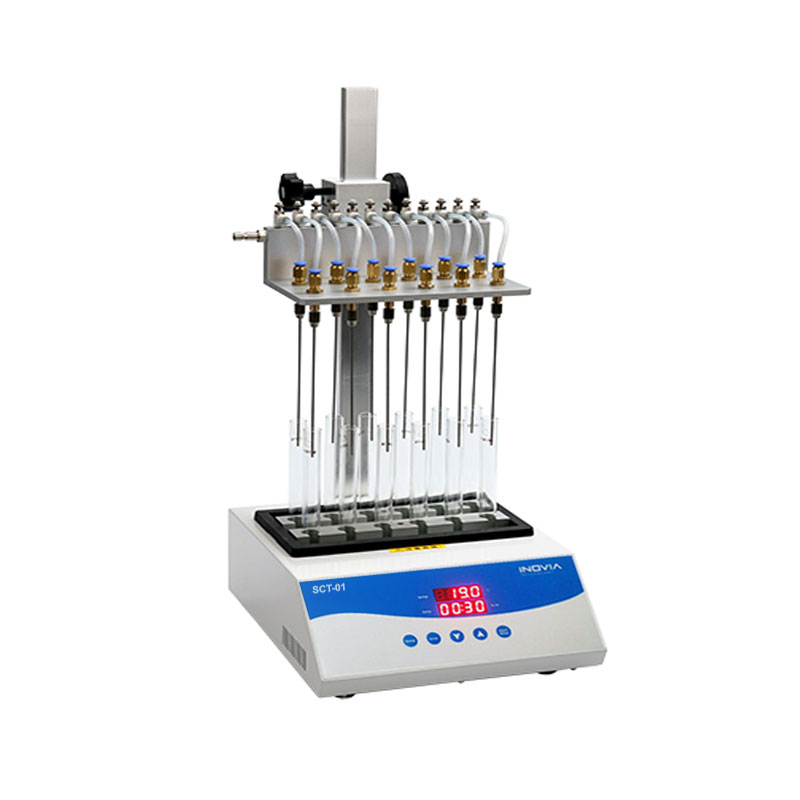

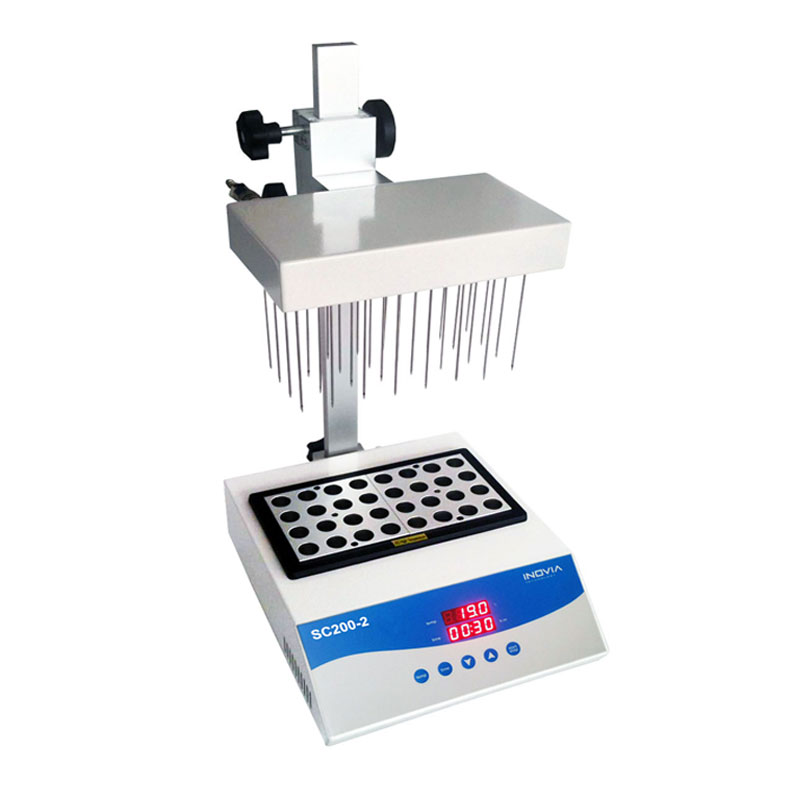

| MODEL | SCT-01 | SC200-1B | SC200-1A | SC200-2 |
| Temperature Range | RT +5°C - 150°C | |||
| Timing Range | 1min - 99h59min | |||
| Display | LED | |||
| Temperature Control Accuracy at 40-100°C | 1°C | ±0.5°C | ||
| Temperature Control Accuracy at 100-150°C | 1.5°C | ±1°C | ||
| Temperature Accuracy For Blocks at 40°C | ±0.3°C | |||
| Display Accuracy | 0.1°C | |||
| Heating Time (40-150°C) | ≤30min | |||
| Maximum Vertical Travel | 285mm | |||
| Maximum Gas Pressure | 0.02MPa (Using Needles ≤16) 0.05MPa (Using Needles >16) |
|||
| Maximum Gas Usage | 15L/min | |||
| Needles Length (mm) | 150 | 80 | 150 | |
| Block Capacity | 1 (12pcs) | 1 | 2 | |
| Power Supply | 400W | 200W | 400W | |
| AC220V/AC120V, 50/60Hz | ||||
| Dimension (mm) (LxWxH) | 280x240x500 | |||
| Weight (kg) | 8 | |||

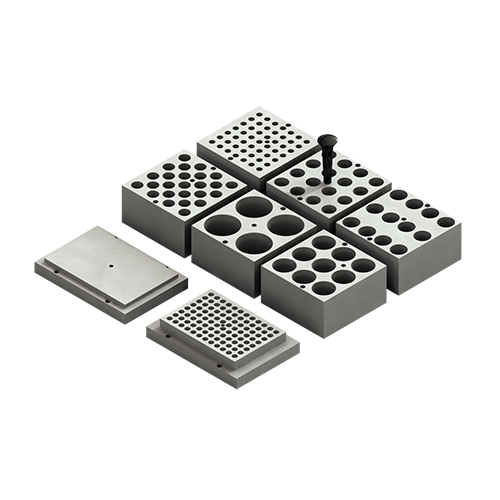

Block Types for SC200-1A,1B,2 :
| Type | Tube Diameter | Capacity | Dimension (mm) |
| BK01 | 6mm | 49 | 96x96x49 |
| BK02 | 7mm | ||
| BK03 | 10mm | 25 | |
| BK04 | 12mm | ||
| BK05 | 13mm | ||
| BK06 | 15mm | 12 | |
| BK07 | 16 | ||
| BK08 | 16mm | 12 | |
| BK09 | 16 | ||
| BK10 | 19mm | 12 | |
| BK11 | 16 | ||
| BK12 | 20mm | 9 | |
| BK13 | 26mm | ||
| BK14 | 28mm | 4 | |
| BK15 | 40mm | ||
| BK16 | 0.5ml | 49 | |
| BK17 | 1.5ml | 25 | |
| BK18 | 2.0ml | ||
| BK19 | 0.2ml | 96 | 78x114x26 |
| BK20 | Plate | Microplate | 81x123x19 |
Note: Block BK19 and BK20 only can use in SC200-1B.
Blocks for SCT-01:
| Type | Description | Dimension (mm) |
| BS01 | 12xΦ10mm | 192x96x49 |
| BS02 | 12xΦ12mm | |
| BS03 | 12xΦ13mm | |
| BS04 | 12xΦ15mm | |
| BS05 | 12xΦ16mm | |
| BS06 | 12xΦ19mm | |
| BS07 | 12xΦ20mm |
