Features;
The FC5000 Series Desktop Centrifuges provide a reliable and fast operation thanks to the Brushless DC Motor and Micro Processor controlled system.

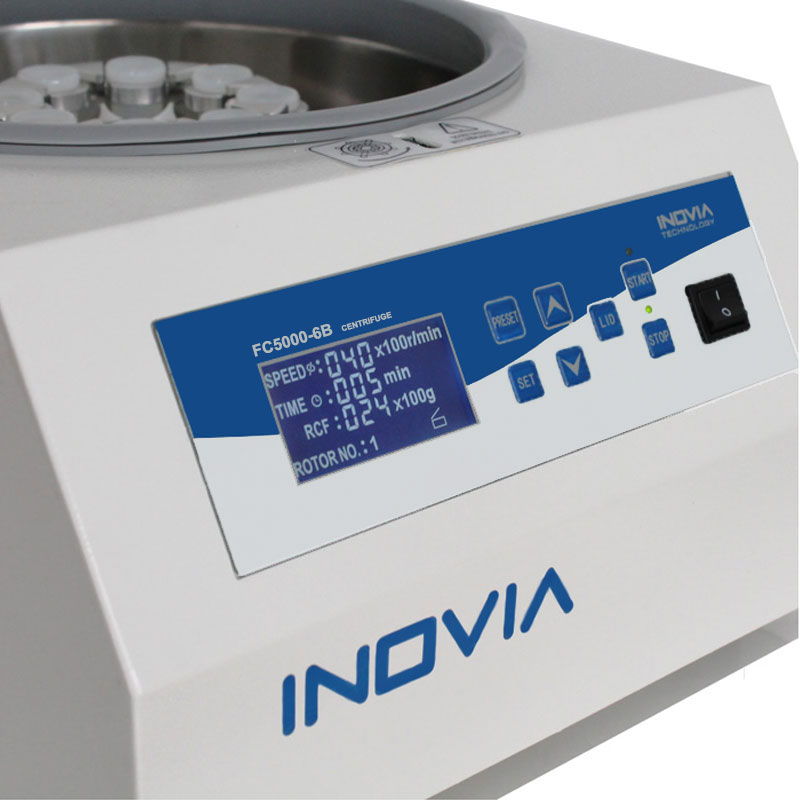

The front panel's Soft-Touch keys and LCD display make it easy to control and monitor parameters such as RPM, RCF, Time and Cover status.
The devices provide high quality service to the user by preventing the heating of samples due to the necessary heating balance protection equipments or air exchange channels, preventing contamination and similar distortions.
External design made of very robust hair and stainless steel materials provides reliable and comfortable operation with balance control and cover security systems.
Each of the models offers a wide range of rotor capacities.
The FC5000 Series is a series produced for a wide range of applications from Biochemistry to Microbiology. It is one of our ideal solutions for blood tube centrifugation especially in health centers and hospitals.
The normal operating condition;
- Ambient Temperature: 5°C – 40°C
- The Relative Humidity: ≤80% (RT 25°C)
- Power Supply: AC220 50Hz 2A
Technical Specifications;
|
MODEL |
FC5000-1C | FC5000-6B | FC5000-6C Blood Card Centrifuge |
HEMA12-1 |
| Max. Speed (RPM) | 6000 | 4000 | 3500 | 12000 |
| Speed for Blood Type Card (RPM) | N/A | N/A | 3000 | N/A |
| Max. RCF (xg) | 4500 | 2420 | 2500 | N/A |
| Timer Range | 1-999min | |||
| Control | Microprocessor Control | |||
| Motor | Brushless Motor | |||
| Noise | ≤65dB | ≤55dB | ≤60dB | N/A |
| Power Supply | AC220V 50Hz 5A | AC220V 50Hz 2A | AC220V 50Hz | AC220V 50Hz 8A |
| Dimension (LxWxH)(mm) | 350x430x260 | 430x340x230 | N/A | 350x280x250 |
| Package Dimension (LxWxH)(mm) | N/A | 440x530x340 | N/A | N/A |
| Net Weight (kg) | 22 | 13 | 18 | 18 |
| Gross Weigh (kg) | 25 | 15 | 20 | N/A |
Rotor Types;
| MODEL ROTOR TYPE |
FC5000-1C | FC5000-6B | FC5000-6C | HEMA12-1 | |
| CAPACITY | RPM RCF(xg) | RPM RCF(xg) | RPM RCF(xg) | RPM RCF(xg) | |
| ANGLE ROTOR | 12 x 10/15ml | 6000 4500 | 4000 2420 | ||
| 10 x 20ml | 4000 2420 | ||||
| SWING ROTOR | 8 x 10/15ml | 4000 2420 | |||
| Micro Column Blood Type Card Quantity |
6 or 8 Column Card | 3000 2500 | |||
| HEMATOCRIT ROTOR | 24 Standard Capillary | 12000 RPM |
