Features;

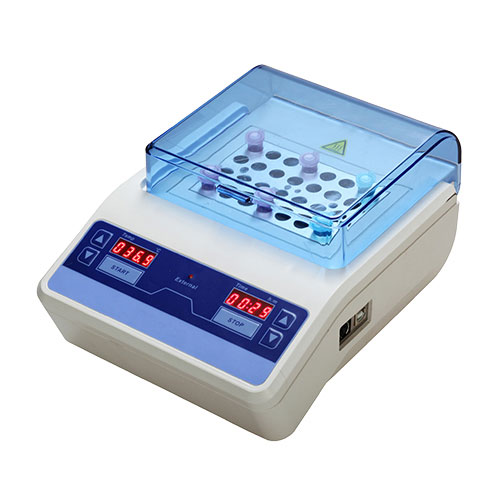

NDI Series dry bath incubator are ideal for incubation and activation of cultures, enzyme reactions, immunoassays, melting/boiling points and a wide variety of other laboratory procedures.

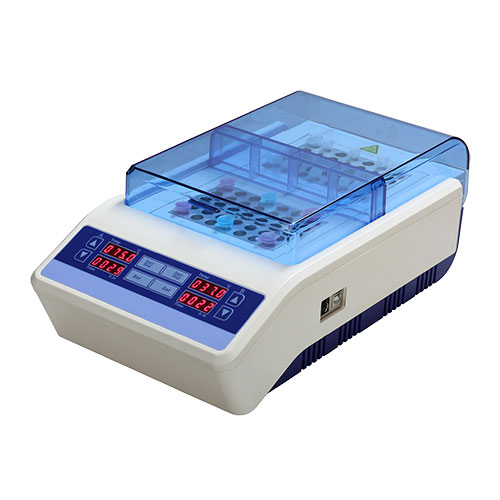

NDI-2E is an innovative design accommodating two blocks with independent digital temperature control.
Each block can be set at different temperatures.
Ideal for multiple users or for applications where samples have to be transferred between two temperatures very quickly.
Normal Operating Condition;
Ambient Temperature: 5°C - 35°C
Relative Humidty: ≤70%
Power Supply: AC220V - 50/60Hz
Technical Specifications;
| MODEL | NDI-1 | NDI-2 | NDI-2E |
| Temperature Control Range | RT+5°C - 105°C | ||
| Timing Range | 1min-99h59min | ||
| Temperature Accuracy | ≤±0.5°C | ||
| Temperature Display Accuracy | ±0.1°C | ||
| Heating Time (from 20°C to 105°C) | ≤20min | ||
| Block Capacity | 1 | 2 | |
| Power Supply | 120W | 240W | |
| Fuse | 250V 1.5A Φ5x20 | 250V 3A Φ5x20 | |
| Dimensions (mm)(LxWxH) | 255x190x125 | 370x215x150 | |
| Weight (kg) | 2,5 | 4,5 | |

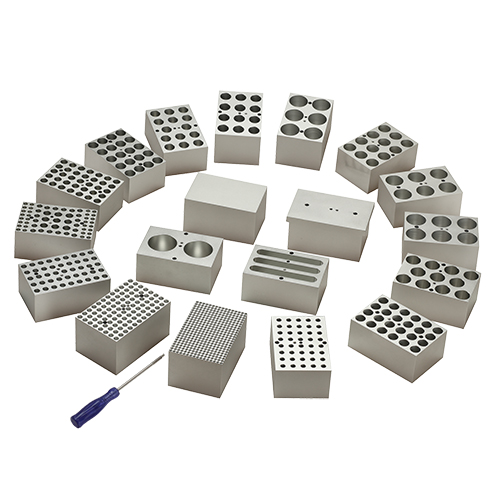

Block Types;
| Type | Tube Diameter | Capacity (Qty Hole &ml) | Dimension (mm) |
| BH01 | 96 x 0.2ml | 108 x 72 x 60 | |
| BH02 | 45 x 0.5ml | 108 x 72 x 49 | |
| BH03 | 35 x 1.5ml | ||
| BH04 | 35 x 2.0ml | ||
| BH05 | 15 x 0.5ml + 20 x 1.5ml | ||
| BH06 | 20 x 1.5ml + 15 x 2.0ml | ||
| BH07 | 32x0.2ml + 20x0.5ml + 9x1.5ml | ||
| BH08 | 20 x 5ml | ||
| BH09 | 20 x 10ml | ||
| BH10 | 12 x 15ml | 108 x 72 x 60 | |
| BH11 | 6 x 50ml | ||
| BH12 | 96 x 0.2ml Well-Plate | 116.5 x 75 x 56 | |
| BH13 | Solid Block (No Holes) | 108 x 72 x 60 | |
| BH14 | 384 PCR Plate | ||
| BH15 | 6mm | 40 qty | 108 x 72 x 49 |
| BH16 | 10mm | 28 qty | |
| BH17 | 12mm | 24 qty | |
| BH18 | 13mm | 24 qty | |
| BH19 | 15mm | 14 qty | |
| BH20 | 16mm | 14 qty | |
| BH21 | 19mm | 12 qty | |
| BH22 | 20mm | 11 qty | |
| BH23 | 26mm | 6 qty | |
| BH24 | 28mm | 6 qty | |
| BH25 | 40mm | 2 qty | |
| BH26 | 13 x 95 x 32 Per Cuvette | 3 qty |
