Features ;
MV-2500 is widely used in life science, physical and chemical analysis fields, for vigorous re-suspension of cells or chemical pellets. It is suitable for 0.2-50ml microtubes and test tubes or small containers less than 108mm diameter.
Technical Specifications;
| Model | MV-2500 |
| Operation Way | Knob + Ruling |
| Orbital Diameter | 3mm |
| Oscillation Method | Circle |
| Operation | Continued / Transient Oscillation |
| Speed | 0 – 2500 RPM |
| Timing | / |
| Voltage | AC 220V / AC 110V, 50/60Hz |
| Power | 60W |
| Fuse | 250V, 1A, Φ5x20 |
| Dimension (WxDxH) | 134x156x150mm |
| Weight | 2.4 Kg |
| Tube Holder | Refer table of “Tube Holder” |
Tube Holders;
|
No. |
Tube Holder |
|
X1 |
Standard rubber head for tubes and small containers less than 30 mm diameter |
|
X2 |

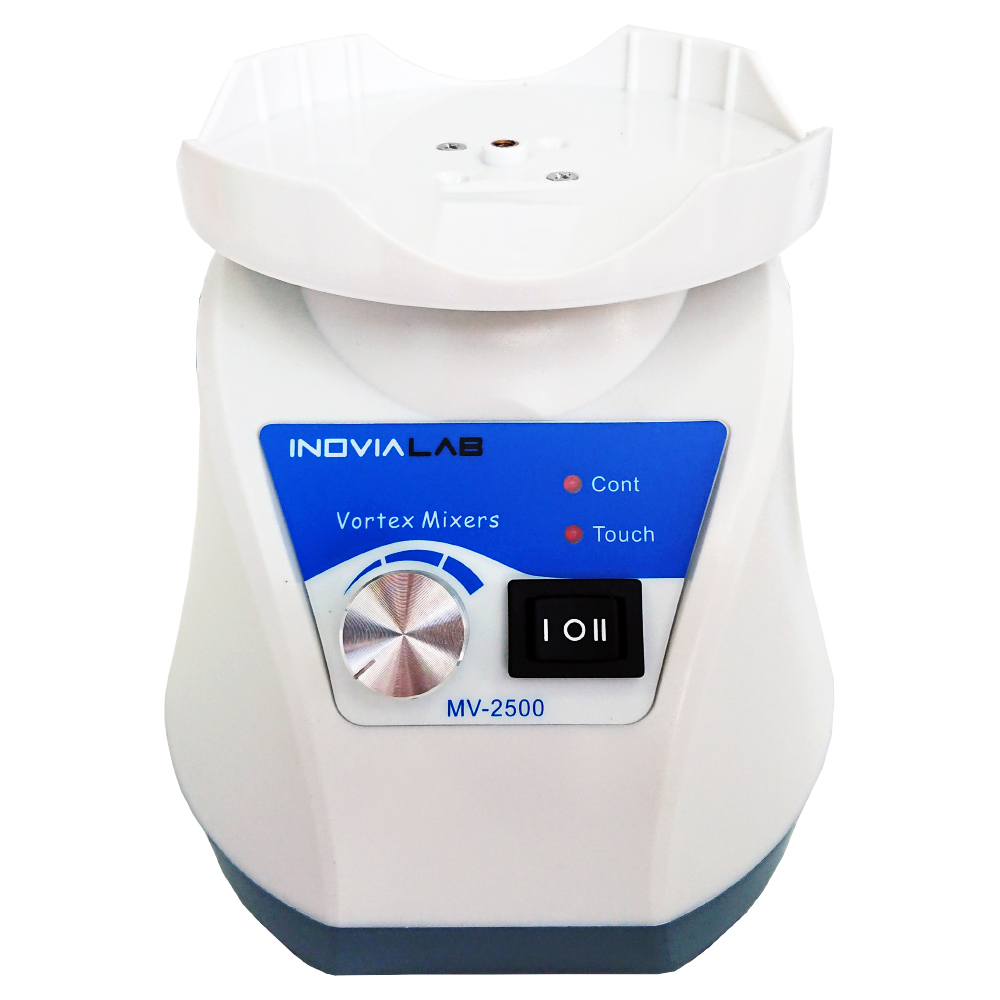

Standard plastic tray |
|
X3 |

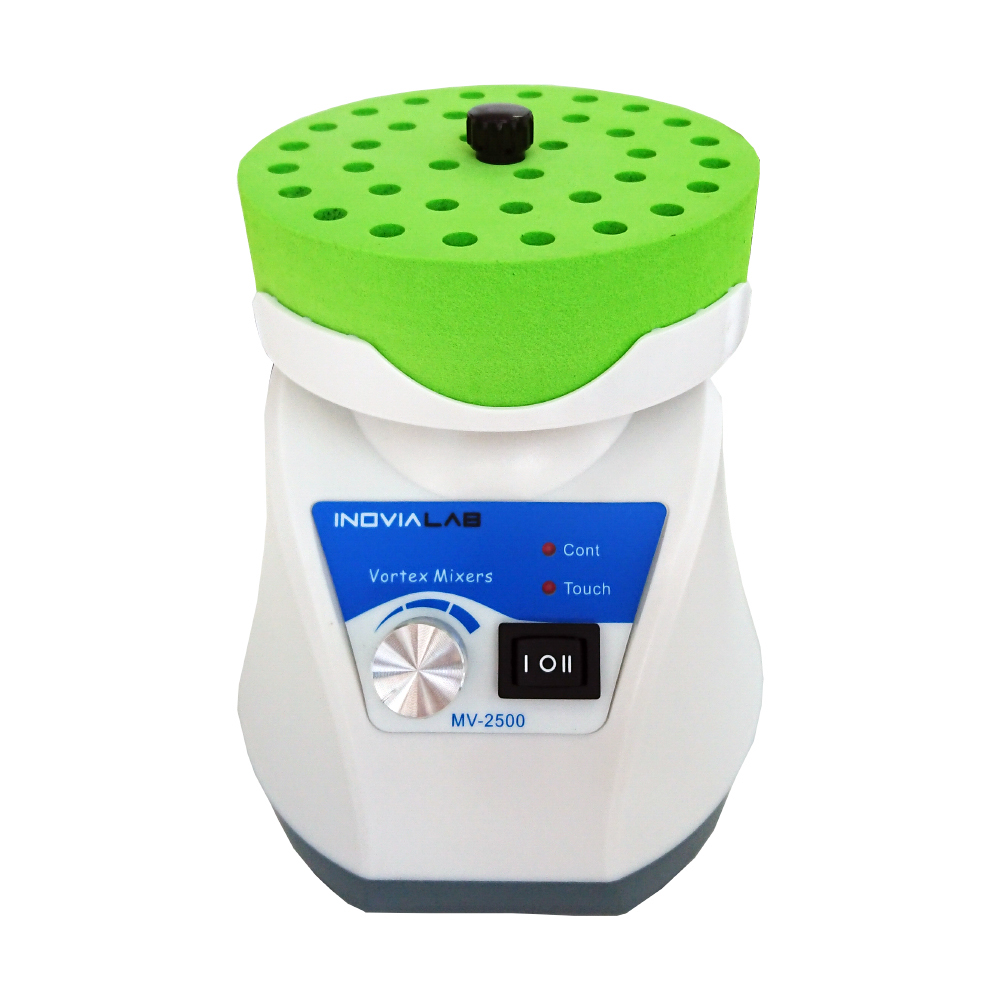

Foam Tray used with X2 (standard tray), for tubes or small containers less than 108mm in diameter |
|
X4 |
Foam module used with X2( standard tray), for 0.2ml test tube, aperture Φ5mm×96 |
|
X5 |
Foam module used with X2( standard tray), for 0.5ml test tube, Φ6.6mm×37 |
|
X6 |
Foam module used with X2( standard tray), for 1.5/2.0ml tube, Φ9.8mm×24 |
|
X7 |
Foam module used with X2( standard tray), for 15ml test tube, Φ14mm×8 |
|
X8 |
Foam module used with X2( standard tray), for 50ml test tube, Φ26.2mm×4 |
|
X9-10 |
Microplate tray for various microplates, deep well plates, etc. |
|
X11 |
Foam module used with X2( standard tray), for 0.2ml, 0.5ml, 1.5ml, 2.0ml tubes |
|
X12 |
Foam module used with X2( standard tray), for 5ml/7ml test tube ×8 |
