MPS-100 Series Thermal Plate Shaker & Heaters

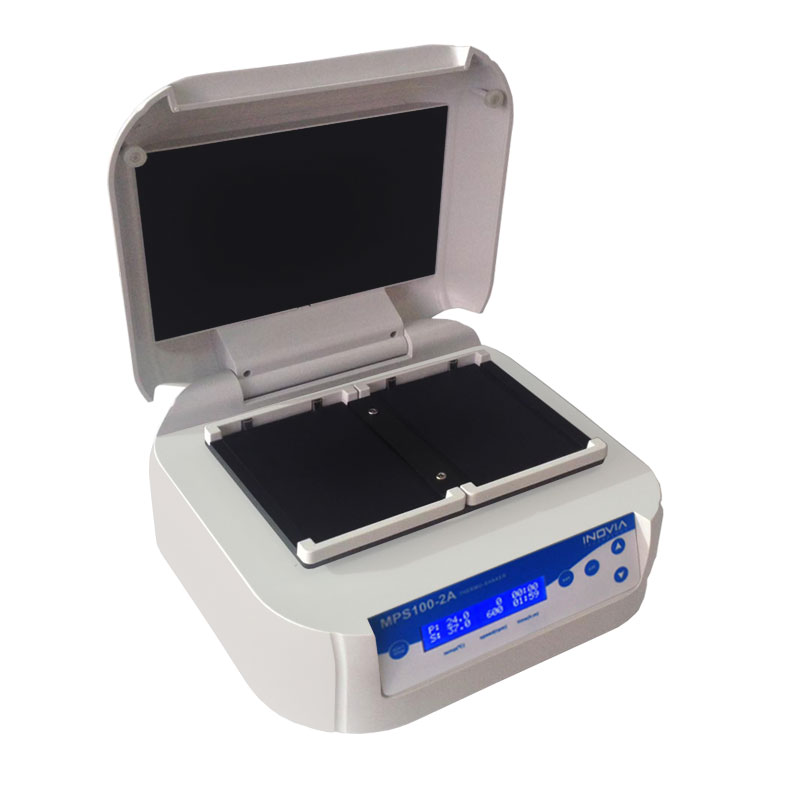

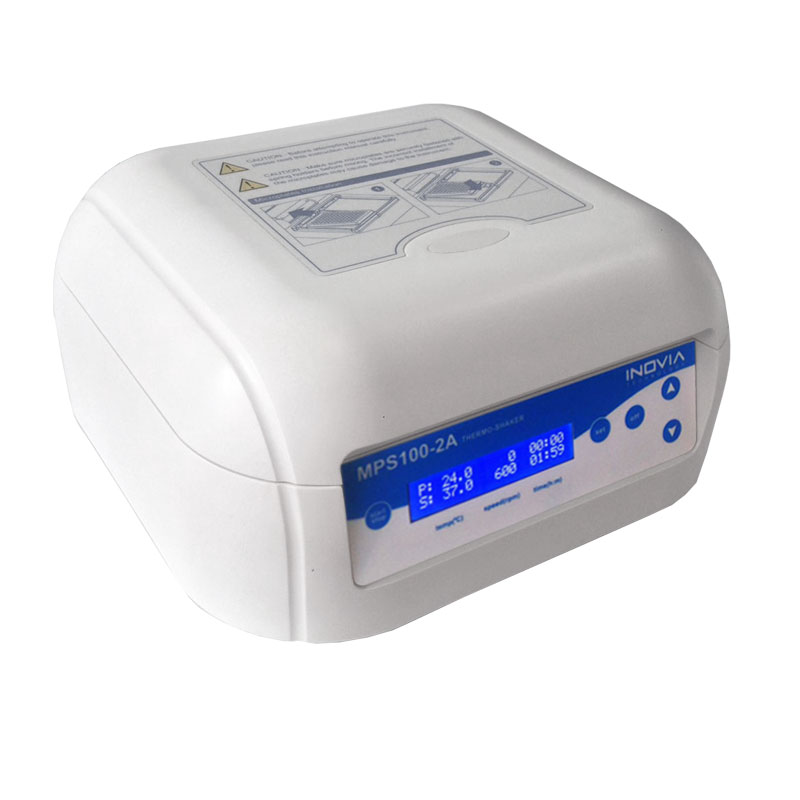

MPS-100 Series Thermo-shaker incubator is a high performace microplate incubator and orbital shaker which accommodates uo to two microplates. MPS-100 Series can be used for any enzyme or cell-based assays requiring uniform and strictly controlled incubation up to 70°C and effective mixing.

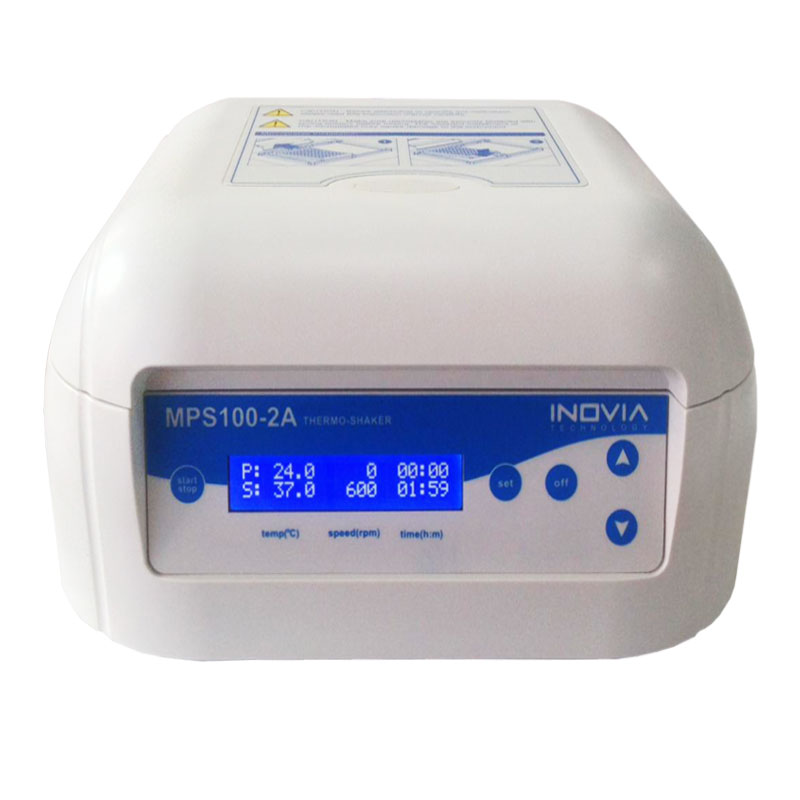

Temperature, shaking speed , and incubation time are programmable via the keypad, while the status parameters are displayed on the LCD in real time via an easy to use interface.
Microprocessor controlled heating plates above and below microplates provide uniform temperature with less than 0.5°C variation between any two wells. This ensures ourstanding and repeatable assay performance.

Features :

1. Microprocessor controlled time, RPM, and temperature
2. Heating plates above and below the microplates
3. Incubation up to 70°C in 0.1°C steps
4. Shakes and incubates two microplates simultaneously
5. Beep-signal and stop of shaking motion after program completion

6. Excellent temperature accuracy and uniformity across the plate


The device can be used in :

1. Cytochemistry — for in situ reactions;
2. Immunochemistry — for immunofermentative reactions;
3. Biochemistry — for enzyme and protein analysis;
4. Molecular chemistry — for matrix analysis.



Technical Specifications;



MODEL MPS-100-2A MPS-100-4A
Number of Platform 2 4
Temperature Range RT+5°C - 70°C
Shaking Speed Range (rpm) 100 - 1200 100 - 1500
Mixing Orbit 2mm
Timing Range 1min - 99h59min
Temperature Accuracy ±0.5°C
Display Accuracy ±0.1°C
Heating Time (at RT 25°C) ≤20min (From 20°C to 70°C)
Power Supply AC100-240V   50/60Hz   150W AC120-220V   50/60Hz   300W
Dimension (DxWxH)(mm) 280x270x150 320x350x185
Weight 6,5 kg 9 kg
