OUR SOLUTIONS
Laboratory Equipments » Blok Heaters » MiniD Series Mini Dry Block Heater

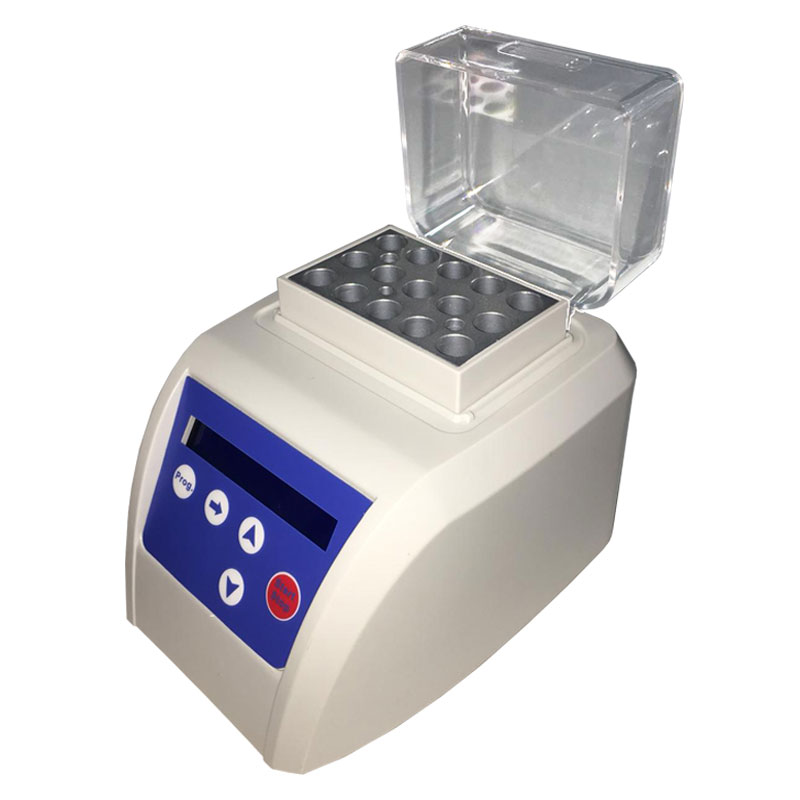

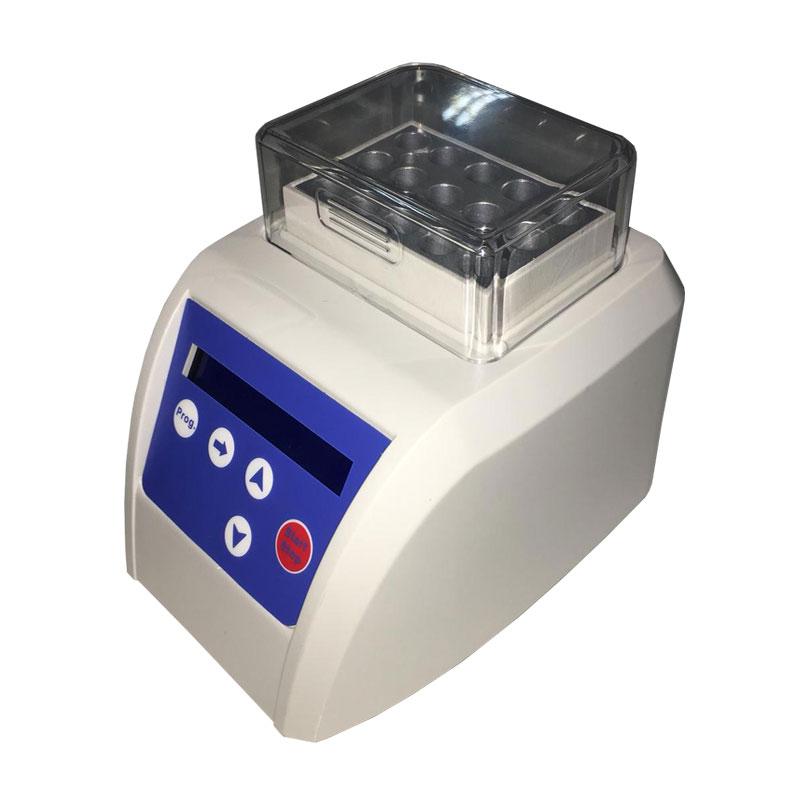

MiniD Series Mini Dry Block Heater



MiniD Series mini dry bath incubators are a series of applications in life sciences, molecular biology, environment and industry laboratories, and a variety of applications including incubation, enzyme reactions and immunoassays.

With its microprocessor control, it shows itself one step ahead.

Microprocessor controlled MiniD series dry washing incubators utilize thermoelectric control system with many advantages.

With many different metal sample blocks, the device can be adapted to many sample types and different conditions.

Having a small size allows it to be easily located in even the most crowded environments.





Features;



1. Easy to Install and use LCD Screen.

2. MiniD Series is personalized enough to fit inside the palm.

3. Simultaneous Display showing actual and set temperature and time values.

4. Temperature deviation setting that meets different needs.

5. The alarm signal after the program has ended.

6. Provides service according to your needs with more than one kind of blocks. It is also easy to clean and disinfect.



Technical Specifications;



Model MiniD MiniD-C MiniD-100 MiniD-100H
Temperature Control Range (RT) RT+5°C ~ 80°C 0°C - 100°C RT+5°C - 100°C
Timing Range 1 - 999min or 1 - 999sec
Temperature Control Accuracy ±0.5°C
Temperature Control Accuracy at (40°C) ±0.3°C
Display Accuracy ±0.1°C
Heating Time (25°C to Max. Temp.) ≤12min ≤20min ≤15min ≤15min
Cooling Time (25°C to 0°C) N/A ≤25min N/A N/A
Heating Lid N/A N/A N/A Available
Heating Lid Temperature Range N/A N/A N/A +5°C - 100°C
Power Supply DC12V DC12V DC24V DC24V
Dimension (LxWxH)(mm) 150x110x100 162x110x140 152x120x112 152x120x112
Weight (kg) 0.5 1 0.8 0.9

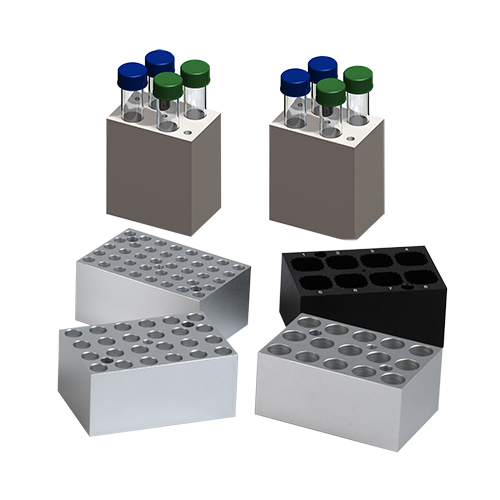

Block Types;



Block Type Capacity (Qty Hole & ml)
A-MiniD 40 x 0.2ml
B-MiniD 24 x 0.5ml
C-MiniD 15 x 1.5ml
D-MiniD 15 x 1.5ml
E-MiniD 8-- 12.5 x 12.5 x 32mm
F-MiniD 4 x 15ml
G-MiniD 2 x 50ml
