Features:

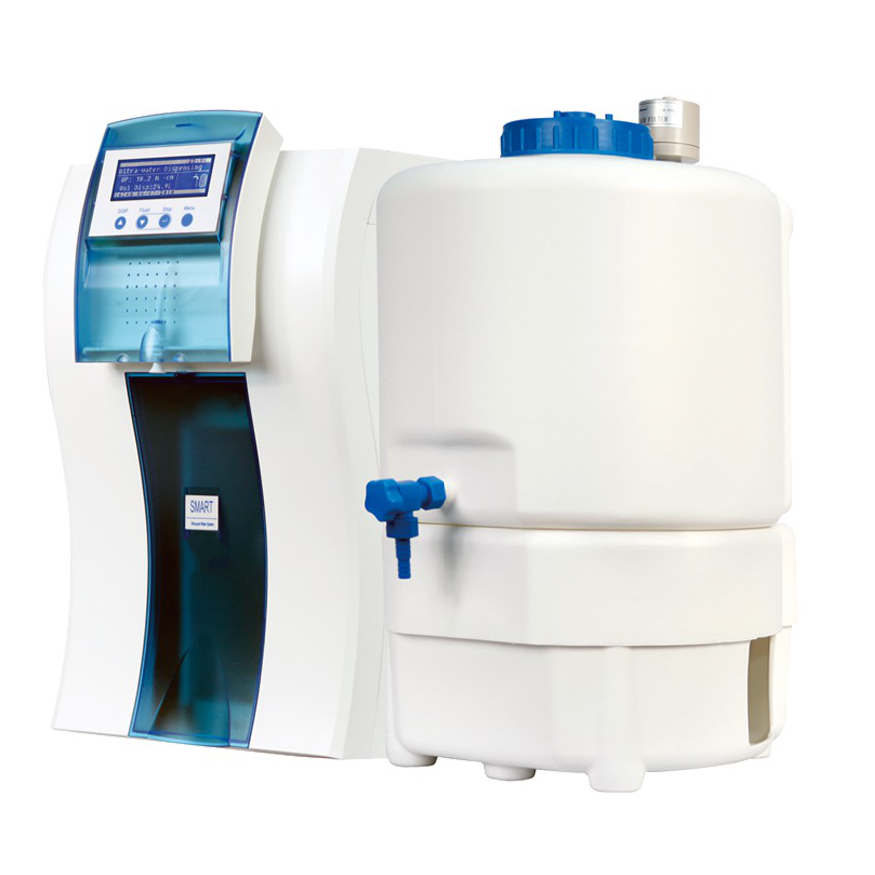

The INOS-N (UV/VF) system is a compact solution that combines the production of pure water and ultra-pure water in a single unit- eliminating the need for a pre-treatment stage upstream of the ultra-pure water system
Simplest operation!
Just four control keys allow for rapid operational readiness to improve user experience.
Everything else is automatically managed by the built-in microprocessor control system.
PIN-coded access to software set points prevents unauthorized changes to operation or system settings.
Rapid cartridge replacement!
One,two,three...rapid catridge change due to quick-connection.
Water purification progresses through separate modules, each with quick connects for simple individual replacement.
Streamlined apperance and intelligent structural design with easy-access door means system can be located under bench.
Quick and easy sanitizationa and replacement of consumables reduce maintenance time.
Configurations:
| INOS-N Systems | INOS-N-15UV | INOS-N-15VF |
INOS-N-30UV |
INOS-N-30VF |
| Pretreatment Module | ✓ | ✓ | ✓ | ✓ |
| High Pressure Pump | ✓ | ✓ | ✓ | ✓ |
| Reverse Osmosis | ✓ | ✓ | ✓ | ✓ |
| Dual Wavelength UV-lamp | ✓ | ✓ | ✓ | ✓ |
| Ultra-Purification Cartridge | ✓ | ✓ | ✓ | ✓ |
| Micro-Filtration Cartridge | ✓ | x | ✓ | x |
| Ultra-Filtration Cartridge | x | ✓ | x | ✓ |
| Point-of-use Filter | ✓ | ✓ | ✓ | ✓ |
| Storage Tank 30L | ✓ | ✓ | ✓ | ✓ |
| Air Filter Net For Tank | ✓ | ✓ | ✓ | ✓ |
| Remote Water Dispenser | ✓ | ✓ | ✓ | ✓ |
Technical Specifications:
| Model | INOS-N-15UV | INOS-N-15VF | INOS-N-30UV | INOS-N-30VF |
| Feed Water Requirement | ||||
| Source | Tap water | |||
| Conductivity | <2000us/cm | |||
| Hardness | <450ppm as CaCO3 | |||
| Pressure | 0.05～0.5MPa(7-72psi) | |||
| Temperature | 5～40˚C | |||
| Purification Water(Class III) | ||||
| Ionic Rejection | >95% | |||
| Bacteria Rejection | >99% | |||
| Conductivity | 1～20us/cm(RO-2 5us/cm) | |||
| Productivity Rate | 15L/h | 30L/h | ||
| Ultrapurification Water(Class I) | ||||
| Resistivity At 25˚C | 18.2MΩ.cm | |||
| Conductivity At 25˚C | 0.055us/cm | |||
| TOC Level | 1～5ppb | |||
| Endotoxin(Pyrogens) | N/A | <0.001EU/ml | N/A | <0.001EU/ml |
| Particulate(≥0.02um) | <1pc/ml | |||
| Bacteria Rejection | <0.1cfu/ml | |||
| Rnase/Dnase | N/A | Free | N/A | Free |
| Manual Dispense Flow Rate | 1.5～2.0L/min | |||
| Automatic Dispense Volume | 100～60000ml | |||
| Electrical Requirements | ||||
| Electrical Voltage | 110V/220V±10% | |||
| Electrical Frequency | 50Hz/60Hz | |||
| Packing Information(Net Weight) | ||||
| Main Units | 24kg | |||
| Water Tank(30L) | 7kg | |||
| External Dimensions(WxDxH) | ||||
| Main Units | 315x525x570mm | |||
| Water Tank(30L) | 380x380x595mm | |||
| Shipping Weight | ||||
| Main Units | 37kg | |||
| Water Tank(30L) | 15kg | |||
| Shipping Dimensions(WxDxH) | ||||
| Main Units | 525x610x770mm | |||
| Water Tank(30L) | 520x440x615mm |
|||
