INOPVO Series Programmable Vacuum Incubator



INOVO and INOPVO Vacauum Ovens are designed specially for drying of material which is thermo-sensitive or decompouded and oxidative easily. It can be filled with inert gases which is especially for a rapid dring of some compoud material.



Features:



1. The rectangular working room makes full use of effective volume. Microcomputer control instrument with functions of high precision on temperature control.

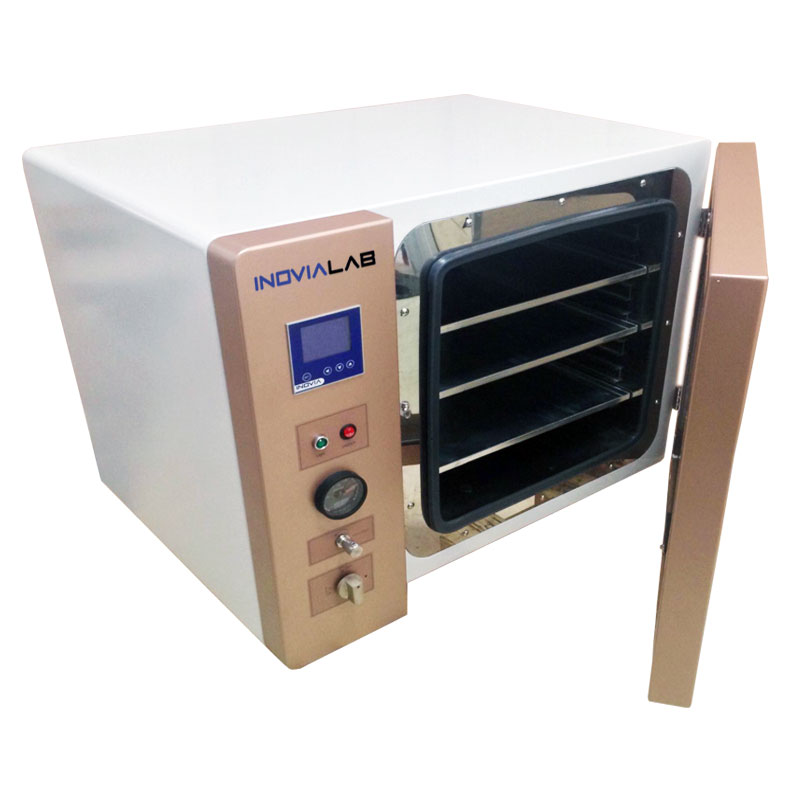

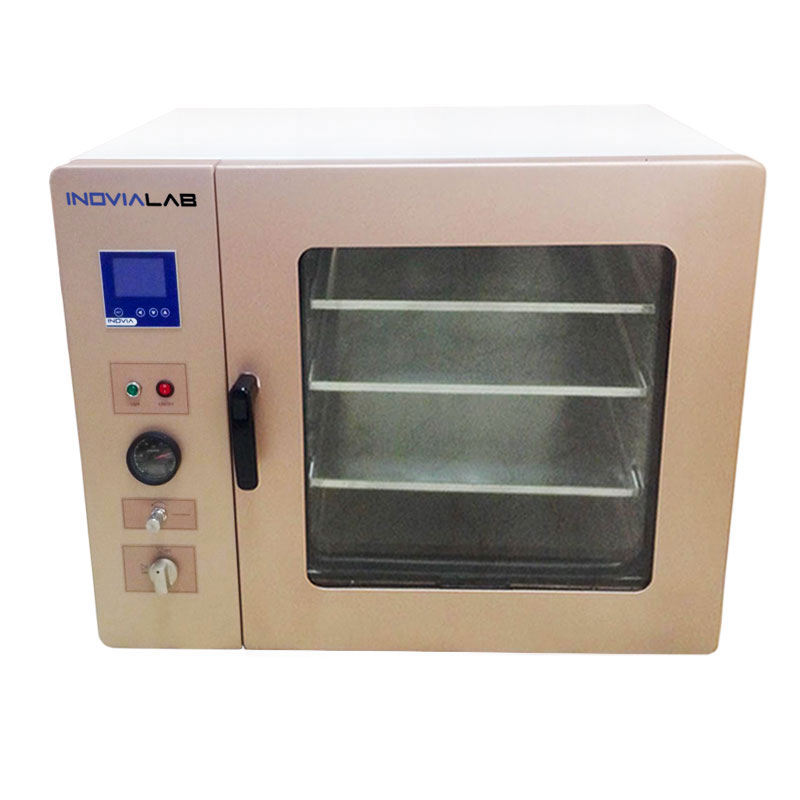

2. Double-layer tempering bulletproof glass door is easy to observe the articles in the working room. It can be filled with inert gases.

3. The closed door could be adjusted. The complete formed high temperature resistance silicon rubber door-sealing ring could guarantee the high vacuum degree.

4. The working room adopts bright polished stainless steel or cold-rolled steel plate. It is long-life and easy to clean.

5. Store, heating, experiment and drying can be done with no oxygen or inert gases, it will not lead to oxidation.



Technical Specifications;



MODEL

INOPVO-6030

INOPVO-6060

INOPVO-6090

INOPVO-6125

INOPVO-6215

INOPVO-6430

Capacity (L)

30

60

90

125

215

430

Number of Shelves

2

3

2

3

3

4

Timer Range

1 - 9999min

Temperature Resolution / Fluctuation

0.1°C / ±1°C

Temperature Range (at RT)

RT+10°C - 200°C

Vacuum Degree

133Pa

Ambient Temperature

5~40℃

Power Supply

AC220V 50Hz

AC380V 50Hz

Power Consumption (W)

1020

1770

1150

2400

2060

2800

Inner Dimensions (mm)

320x320x320

400x400x400

450x450x450

500x500x500

560x600x640

630x810x845

External Dimensions (mm)

630x510x490

630x510x490

840x670x720

730x610x590

780x960x990

780x960x990

Weight (kg)

40

40

80

45

80

80

Material of Inner Chamber

Stainless Steel
