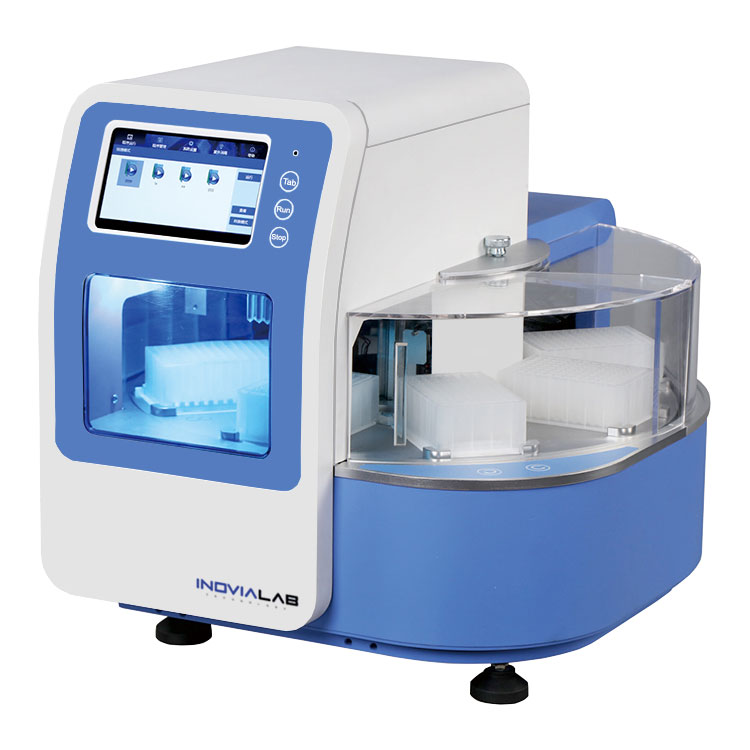

InoPurauto 24/48/96 Series Multi Automatic Nucleic Acid Purification Systems -DNA Isolation Robot-



Features;



InoPurauto Series are an automated system used to separate DNA, RNA, protein and cells from various samples such as blood, cells and tissue. Automated InoPurauto Purification robots enable high-speed, high-quality processing without cross-contamination between samples orreagent transfer.





General Features for InoPurauto-96/24;


1. InoPurauto-96 can process 96x1ml samples, InoPurauto-24 can process 24x10ml samples at the same time.

2. Open and multi-function design provides more methods for reactive optimization and also reliable selection.

3. From the easy to use touch screen interface, parameters can be adjusted according to experimental requirements.

4. The right temperature control system provides a stable purification process.

5. The system creates a stylish appearance in your space with its central rotary table and patented structure design, thus saving space.

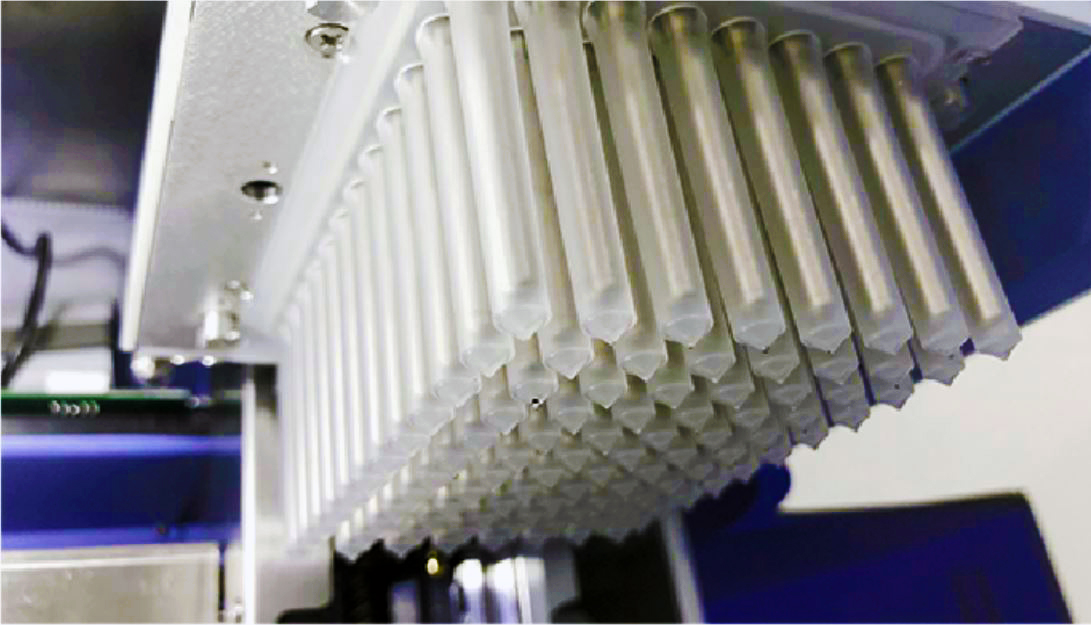

6. Patent design that guarantees robustness and responsibility for the automatic loading and unloading of magnetic rod end combs. (Success rate >99.99%)



Simple and Smart Operation

1. Very convenient openable front door for monitoring reagent optimization and experimental situation allows you to stop the operation in any situation.

2. Intelligent system equipped with device closing protection and starting with auto-control at boot.

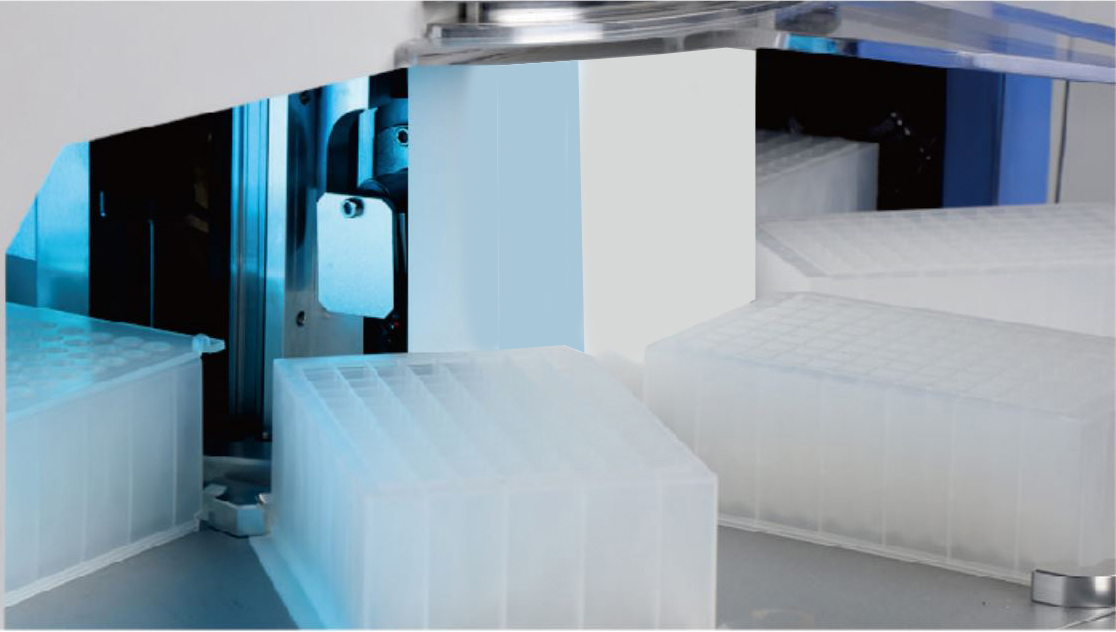

3. 8 different plate identification designs that guarantee their position even when external forces are present.

4. Automatic missing kit detection sensor.

5. Special reagent identification feature with QR code definition without setting programs or protocols.


Pollution Prevention Measures

1. The dripping shield plate and the way the beads are dried are controlled by the software to avoid reagent splashing.

2. Disposable consumables that prevent cross-contamination.


Compatible with Automatic Systems (Optional)

InoPurauto-96/24, mechanical arm, liquid processing system, etc., which meet the high-flow test demand It can be used with automatic equipment such as.



Technical Specifications;

Model InoPurauto-96 InoPurauto-48 InoPurauto-24
Throughput 1~96 1~48 1~24
Process Volume 50~1000ul 200~3000ul 200~10000ul
Consumables 96-deep well plate + 96 magnetic rod's tip 3ml tube strips + magnetic rod's tip 10ml tube strips + magnetic rod's tip
Working Princple Magnetic beads method
Purification Accuracy 100 copy sample positive rate >95%
Stability CV<5%
Magnetic Beads Recyling Rate >95%
Lysis Temperature Ambient temperature ~ 120°C
Elution Temperature Ambient temperature ~ 120°C
Mixing Mixing ways can be editable
Operation Interface 7-inch touch screen, 3 shortcut buttons and mouse is available
Built-in Protocol 8 groups of present protocols, 100 groups of protocols can be stored
Protocol Management New, Edit, Delete, Save as
Expansion Interface Standard USB, ethernet port and Wifi are available
Lighting Yes
Pollution Control UV Light
Exhaust Way By Fan
Data Storage Available, with built-in SD card
Max. Input Power 300W
Dimension 56cmx62cmx50cm
Weight 54kg
