Automate low-throughput sample preparation within your laboratory workflow using Magnetic Particle Processors
INOPurAuto-20 Automated Nucleic Acid Purification System.
It for processing volumes up to 3ml, the system enable all purification steps in a single-strip of nine tubes, and support 20 processed samples per run.
With the ability to go down to 50ul to release target molecules, samples such as DNA or RNA can isolated and concentrated from larger starting volumes at the same time.

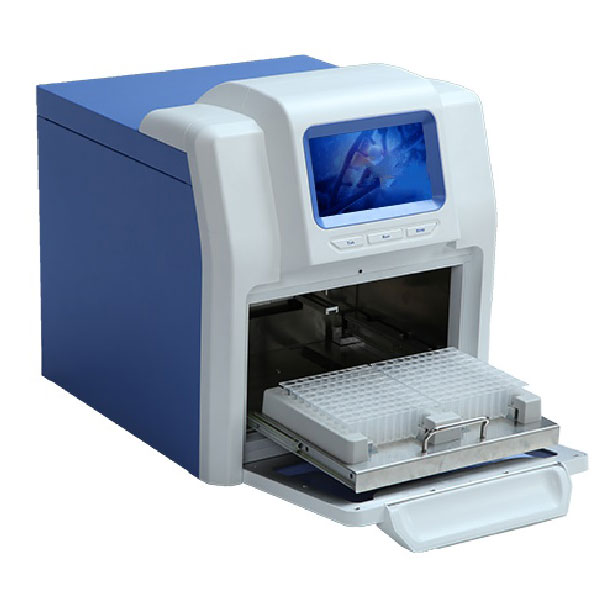

INOPurAuto Series is a bench top device for DNA and RNA purification by using magnetic separation technology from different starting materials, such as blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples.
The device is capable of using magnetic rods to transfer particles through the various purification phases of binding, mixing, washing and elution, offering a solution with minimized hands-on time.
The DNA and RNA purification is of high quality and high molecular weight.
Features;
1. It is easy to use with 7 inch touch screen
2. Very simple operation (easy to install, operate, maintain) without computer
3. Very fast extraction protocol, 15~40 minutes / cycle depending on sample type and method
4. Universal built-in program for easy using
5. High purity and excellent yield of nucleic acid
6. UV lamp to avoid cross contamination
7. 3 shortcut key to make for easy running, stopping the magnetic beads program
8. Open system can optimize purification proposal according to various magnetic beads kits
9. Drawer design to prevent possible injuries
10. With special plastic consumables to avoid cross contamination
11. Improves workflow, and allows staff to perform other value-added tasks
Automatic Nucleic Acid Extraction System Selection Guide | ||||
InoPurauto-20A | InoPurauto-20B | InoPurauto-24D | InoPurauto-32 | |
Max. Processing Volume | 3 mL | 5 mL | 10 mL | 1 mL |
Throughput | 20 | 20 | 24 | 32 |
Consumable | 2 mL Cartridge Magnetic rod comb |
5 mL Cartridge Magnetic rod comb |
5/10 mL Cartridge Magnetic rod comb |
96 Deepwell Plate Magnetic rod comb |
Technical Specifications ;
Model | InoPurauto-20A | InoPurauto-20B |
Throughput | 1-20 | 1-20 |
Process Volume | 50-3000 μL | 50-5000 μL |
Collection Efficiency | >95% | >95% |
Magnetic Rod Number | 20 | 20 |
Purification Accuracy | 100 copy sample positive rate >95% | 100 copy sample positive rate >95% |
Stability | CV<5% | CV<5% |
Consumable | 2mL Cartridge + Magnetic rod comb | 5mL Cartridge + Magnetic rod comb |
Principle/Working Mode | / | / |
Heating for Lysis Tube | RT - 120°C | RT - 120°C |
Heating for Elution Tube | RT - 120°C | RT - 120°C |
Operation | 7" Touch screen, 3 Shortcut keys, External Mouse | 7" Touch screen, 3 Shortcut keys, External Mouse |
Storage Capacity | Preset 8 programs, Max. Store 100 programs | Preset 8 programs, Max. Store 100 programs |
Protocol Management | Create, Edit, Delete, Protocol mode | Create, Edit, Delete, Protocol mode |
Extension Interface | 4 Standard USB port, Ethernet port, WiFi, Built-in SD card | 4 Standard USB port, Built-in SD card |
Lighting | Yes | Yes |
Pollution Control | UV Light | UV Light |
Exhaust | Fan | Fan |
Power Supply | 450W | 450W |
Dimension (WxDxH) | 400x520x450mm | 400x520x450mm |
Weight | 30 Kg | 30 Kg |
Model |
InoPurauto-24D |
InoPurauto-32 |
Throughput |
1-24 |
1-32 |
Process Volume |
50-10000 μL / 50-5000 μL |
50-1000 μL |
Collection Efficiency |
>95% |
>95% |
Magnetic Rod Number |
/ |
/ |
Purification Accuracy |
100 copy sample positive rate >95% |
100 copy sample positive rate >95% |
Stability |
CV<5% |
CV<5% |
Consumable |
5mL Cartridge + Magnetic rod comb 10mL Cartridge + Magnetic rod comb |
96 Deepwell plate + Magnetic rod comb |
Principle/Working Mode |
Magnetic bead method, Magnetic rod method Up and Down mixing, Left and Right mixing |
Magnetic bead method, Magnetic rod method Up and Down mixing |
Heating for Lysis Tube |
RT - 120°C |
RT - 120°C |
Heating for Elution Tube |
RT - 120°C |
RT - 120°C |
Operation |
7" Touch screen, 3 Shortcut keys, External Mouse |
7" Touch screen, 3 Shortcut keys, External Mouse |
Storage Capacity |
Preset 8 programs, Max. Store 100 programs |
Preset 8 programs, Max. Store 100 programs |
Protocol Management |
Create, Edit, Delete, Protocol mode |
Create, Edit, Delete, Protocol mode |
Extension Interface |
4 Standard USB port, Built-in SD card |
4 Standard USB port, Ethernet port, WiFi, Built-in SD card |
Lighting |
Yes |
Yes |
Pollution Control |
UV Light |
UV Light |
Exhaust |
Fan |
Fan |
Power Supply |
450W |
450W |
Dimension (WxDxH) |
400x520x450mm |
400x470x450mm |
Weight |
30 Kg |
28 Kg |
