Features;

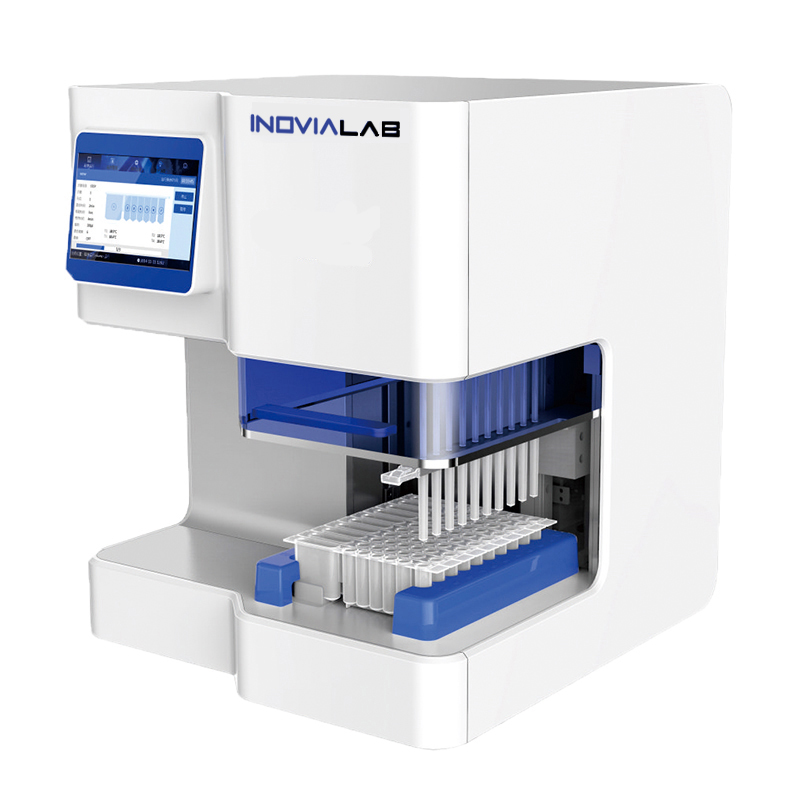

INOPurauto100A
Maximum sample processing volume 5 ml, up to 10 samples can be processed at the same time, the instrument has its own lysis well, elution well, heating function.

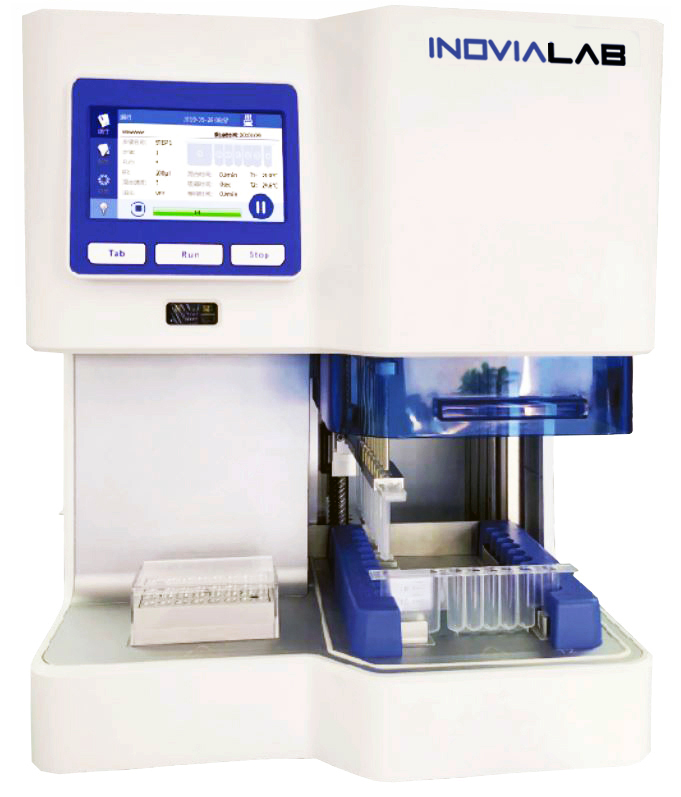

INOPurauto100B
Composite, maximum sample volume 5 ml, up to 10 samples can be processed at the same time, on the basis of 100A, increase the function of block heating.

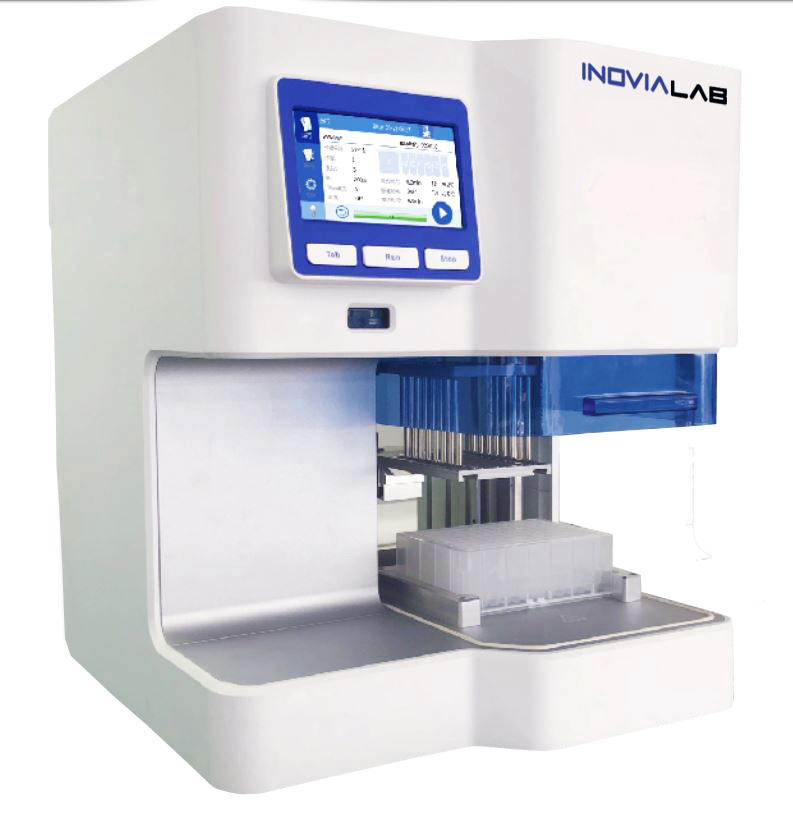

INOPurauto100C
On the basis of INOPurAuto-32, the maximum sample handling capacity can be reduced, and up to 16x1ml samples can be processed simultaneously. It is an ideal choice for automated extraction in small laboratories.
Features;
1. 4.3" touch screen, easy to use.
2. Temperature and protocols can be edited and Saved according to different reagent requirement.
3. Short operation time: 15~40 min per run.
4. High yield of nucleic acid with low magnetic bead loss and good repeatability of results.
5. UV disinfection, avoid cross contamination.
6. Open system which can apply to different magnetic bead extraction reagent.
7. APP software (Android system) which can monitor the system in real time through mobile device.
8. Built-in PC software, APP software, editing, setting, management procedures more simple.
9. Screw rod design which guarantee high operating accuracy; large guide rail design makes the structure more reliable.
10. With QR code identification function, special reagent can be recognized, no need to program or obtain protocols.
11. Open instrument parameters can be set by itself: mixing speed, magnetic absorption and release, cooling fan and other functions.
12. Small volume, suitable for extraction on site.
Technical Specifications;
Model | InoPurauto100A | InoPurauto100B | InoPurauto100C |
Throughput | 1~10 | 1~10 | 1~16 |
Process Volume | 50~5000ul | 50~5000ul | 50~1000ul |

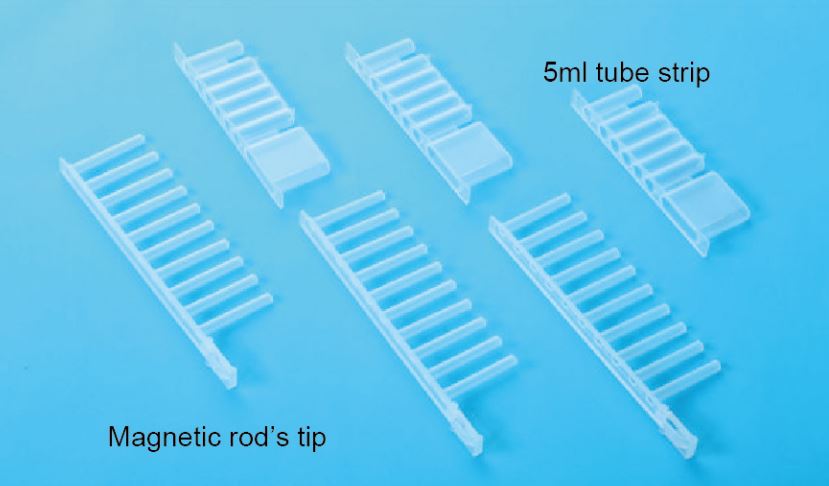

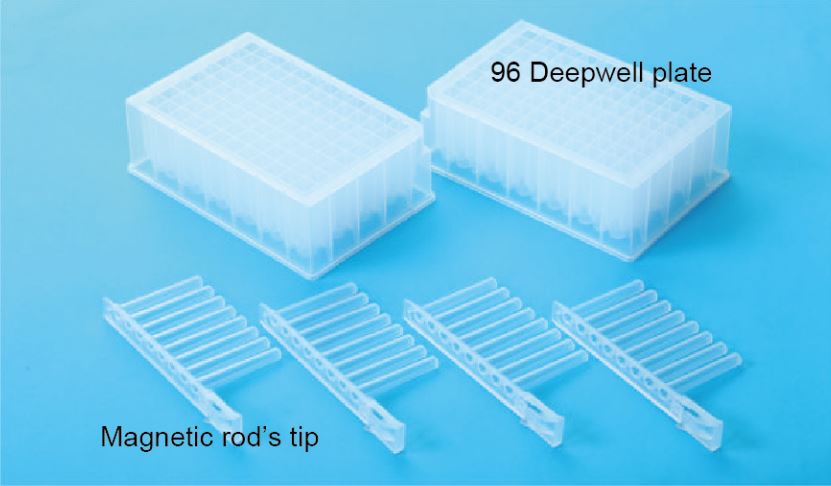

Consumable | 5ml tube strip + Magnetic rod's tip | 96 Deepwell plate + Magnetic rod's tip | |
Block Heating | None | Yes(RT+5°C~105°C) | None |
Lysis Temperature | Ambient Temperature~120°C | ||
Elution Temperature | Ambient Temperature~120°C | ||
Purification Accuracy | 100 copy sample positive rate>95% | ||
Stability | CV<5% | ||
Collection Efficiency | >95% | ||
Mixing | Mixing methods is editable according to different requirements | ||
Operation Interface | 4.3" Touch Screen, 3 shortcut keys, external mouse | ||
Built-in Protocol | Present 6 group programs, 100 pcs program can be saved | ||
Program Management | PC software, APP software, Program editing, Easier management | ||
Extension Interface | Standard USB, LAN, Wifi | ||
Lighting | Yes | ||
Pollution Control | UV Light | ||
Exhaust Way | By Fan | ||
Data Storage | Built-in SD card | ||
Maximum Input Power | 330W±5% | ||
Dimensions | 340x350x410mm | ||
Weight | 18.3kg |
