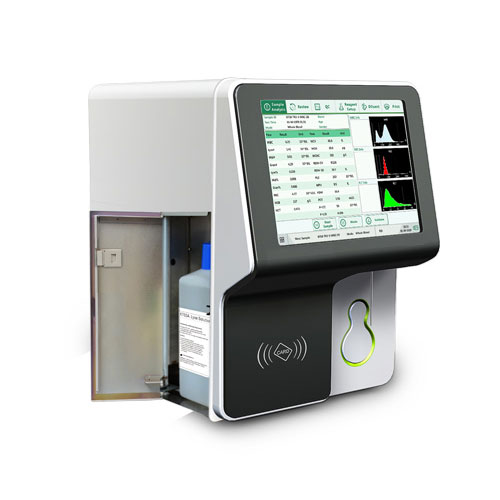

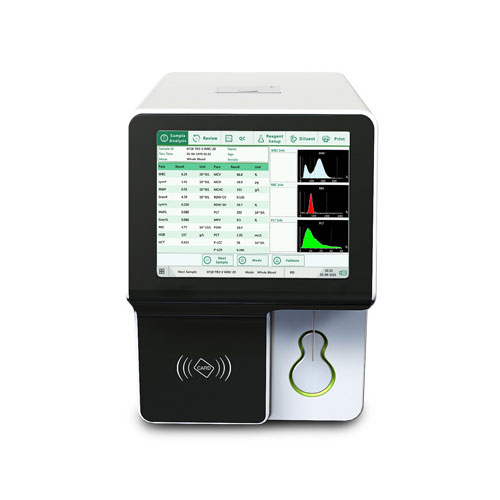

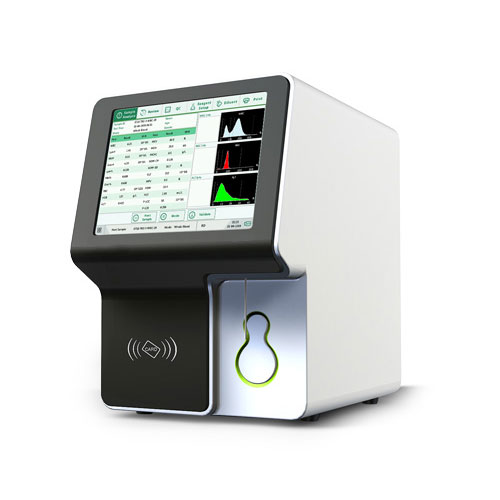

The INOHA-60 is a cutting-edge hematology analyzer that provides a smart count mode for low value samples requiring only 9μL of whole blood.
The RFID card closed system and greater linearity enable more widespread clinical application.
Offering a complete solution with an established system and reliable clinical supports, INOHA-60 is suitable for small and medium-sized laboratories, clinics or hospitals that need cost-effective solutions.
Technical Specifications;
| Model | INOHA-60 |
| Throughput | 60 samples/hour |
| Principle | Impedance for WBC, RBC, PLT Cyanide-free method for HGB |
| Parameters | 22 Parameters including : WBC, Neu#, Lym#, Mid#, Neu%, Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDF-SD, PDW-CV, PCT, P-LCR, P-LCC |
| Histograms | 3 Histograms (WBC, RBC, PLT) |
| Sample Volume | Whole blood mode : 9ul Capillary mode : 9ul Prediluted mode : 20ul |
| Calibration | Manual calibration, Auto calibration, Fresh blood calibration |
| Quality Control | 3-level QC L-J QC, X-B QC |
| Reagent | Diluent : 20L, Lyse : 500ml Probe Cleanser : 50ml |
| Auto print, Manual print | |
| Communication | Support Bi-directional LIS |
| Language | English, Spanish, Italian, French, Russian etc. |
| Input and Output | 10.4" Touch screen Internal printer, support external printer |
| Interface | USB port, Network port |
| Storage | 600,000 results with histograms |
| Blockage Clear | High voltage, high pressure flush |
| Power Supply | AC 100-240V, 50/60Hz, 160VA, 70kPa-106.0kPa |
| Dimension (WxDxH) | 280x430x400mm |
| Net Weight | 17,5 Kg |
Performance
| Precision | Parameter | CV | Measurement Range |
| WBC | ≤2.0% | (3.5-15.0) x 109/L | |
| RBC | ≤1.9% | (3.5-6.0) x 1012/L | |
| HGB | ≤1.9% | (110.0-180.0) g/L | |
| MCV | ≤1.0% | (80.0-110.0)fL | |
| PLT | ≤4.0% | 150.0-500.0) x 109/L |
| Linearity | Parameter | Measurement Range |
| WBC | (0-200.0) x 109/L | |
| RBC | (0-8.00) x 1012/L | |
| HGB | (0.0-250.0)g/L | |
| PLT | (0.5000) x 109/L |
