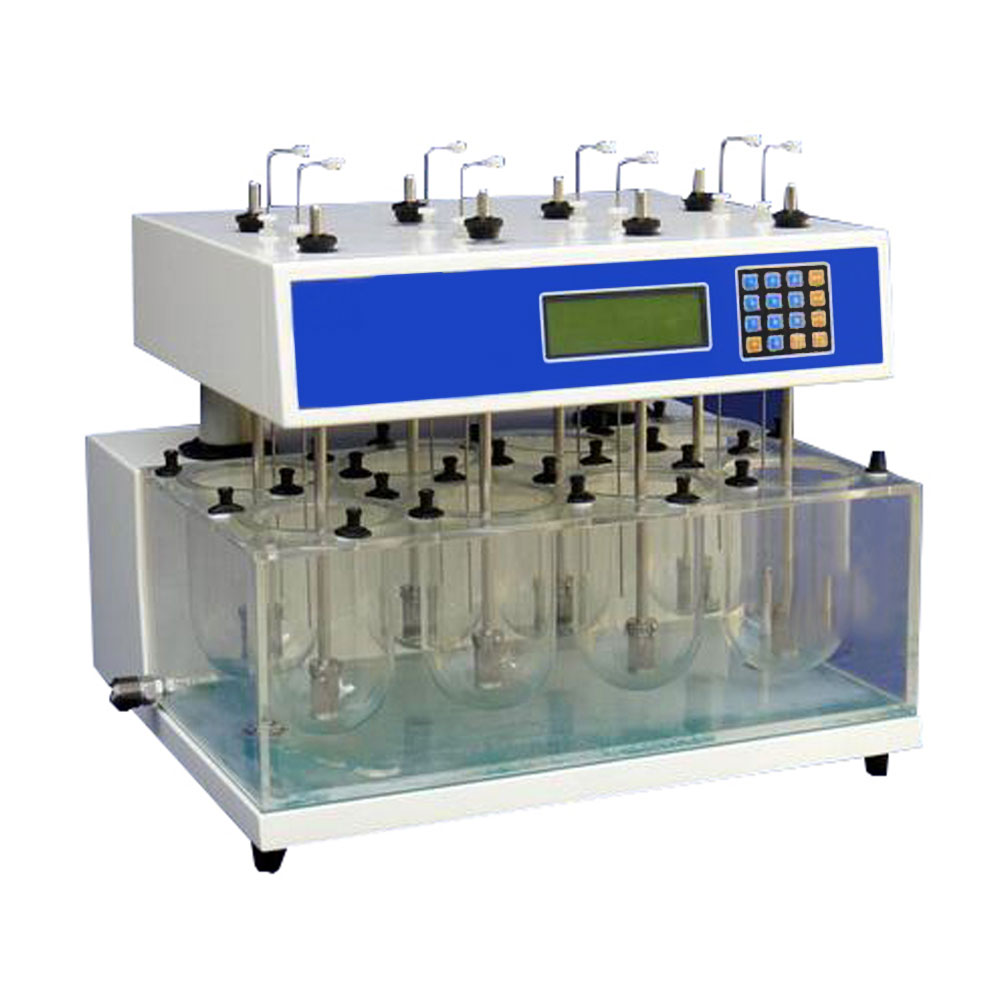

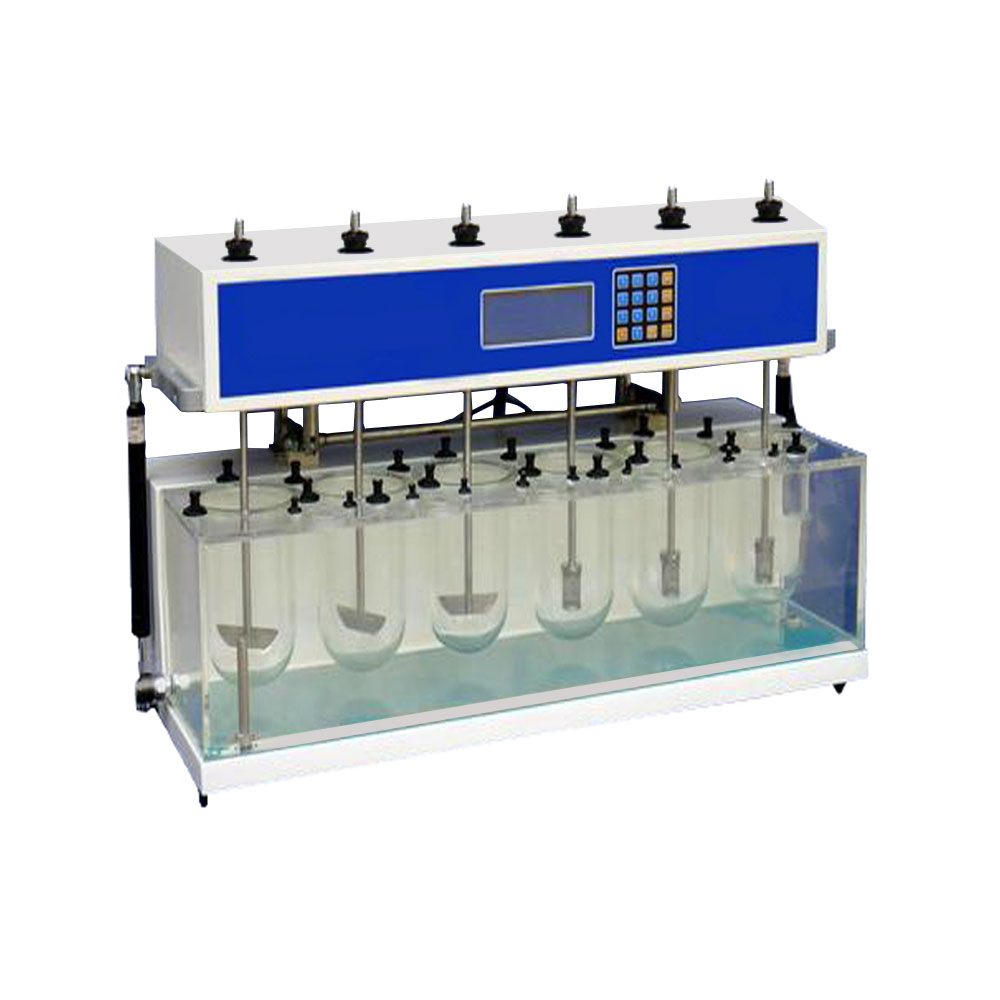

The INODD Series Intelligent Dissipation Tester uses advanced technology and components developed by the utility model drug dissolution tester. Quality performance in compliance with the standard 2010 national pharmacopoeia.
Features;
1. It has easy to use LCD screen interface.
2. Sampling needle with automatic lifting function.
3. Host operating parameters can be preset and automatic storage, the next boot without duplication.
4. Speed control subdivision way power driver stepper motor speed and accurate, smoot operation, low energy consumption.
5. Water bath with built PT1000 sensors, software use POD mode, warming fast, high precision, can be easily corrected with a software error.
6. Timing function displays the current sampling point in time the cumulative total time of sampling points.
7. Has a self-test function and automatic protection function, given a variety of fault signal.
8. Has a temperature preheat timing advance, operating system software recovery.
9. Has printing and USB storage function, the experimantal data retention for viewing.
Technical Specifications;
Model | INODD-3 | INODD-6 | INODD-8 |
Capacity | 3 | 6 | 8 |
Stirrer Paddle Swings | <0.5mm | ||
Turn Blue Swings | 1 | ||
Speed Range | 25 - 250 r/min | ||
Speed Resolution | 1 r/min | ||
Steady Speed Error | <1% | ||
Temperature Range | N/A | 10 (RT) - 45°C | (RT) - 45°C |
Temperature Resolution | N/A | 0.01°C | 0.1°C |
Heating Power | N/A | N/A | 1000W |
Temperature Error | N/A | <0.05°C | <0.1°C |
Timing Cumulative Time | Up to 5999 minutes, the countdown | ||
Sampling Cycle Time | Up to 10 different sampling period, the countdown | ||
Sampling Period of Time | Up to 5999 minutes, the countdown | ||
Power Supply | AC220V ±10% 50Hz | ||
Working Conditions | Temp.: 0 - 40°C Relative Humidity: <80%HR |
