Application Area ;
In environments such as hospitals and laboratories, it can be used to store surgical instruments, various items, dressings and etc. It is widely used to make the units germ-free (sterilized).
It can also be used in chemistry to examine how some substances will react under strong pressure.
Security Features;
1. The safety valve can open automatically to release the pressure at the moment of overpressure.
2. The sensors will automatically shut down the system when it detects an excessive temperature.
3. Sensors placed to control the door status will not start working when the door is open and at the same time, if the door is opened during operation, it will immediately stop working.
4. When the water reaches a very low level, the system shuts down and an error code is displayed on the screen.
5. Overvoltage or electrical leakage protection apparatus-air switch.
6. The door is covered with safety shell made of heat-insulating material, which can protect the operator from heat burning and looks beautiful.
Technicial Specifications:
1. Optional printer to save sterilization data.
2. LED screen displays all steps of the complete operation and error codes.
3. Independent quick service window, easy for repair and maintenance.
4. Automatic selection of fast or low exhaust to avoid overflow of sterilization liquid.
5. Dressing, equipment, rubber, culture medium, waste, etc. sterilization programs.
6. Handwheel type quick-open door structure, self-expanding sealing ring, easy operation and safe.
7. Complete water filling, dynamic pulse exhaust, heating, sterilization, draining and drying work automatically.
8. Adopting certain temperature (98-102°C) exhaust method and dynamic pulsed exhaust method to discharge the cold air inside the room to achieve steam saturation.
Technical Features;
MODEL |
INOAClave-HV35 |
INOAClave-HV50 |
INOAClave-HV75 |
INOAClave-HV100 |

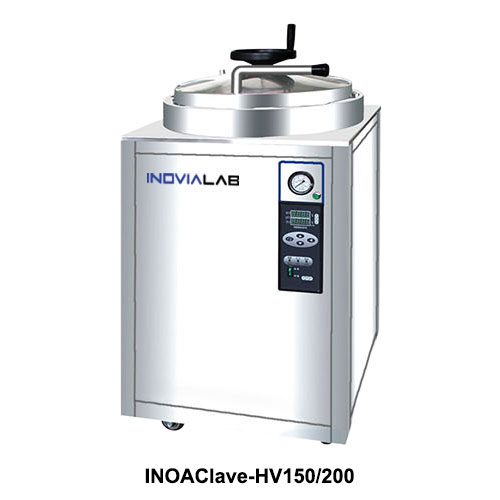

INOAClave-HV150 |
INOAClave-HV200 |
Chamber Volume (L) |
35 |
50 |
75 |
100 |
150 |
200 |
Chamber Size (mm) |
φ386x514 |
φ340x550 |
φ400x600 |
φ440x650 |
φ500x760 |
φ500x1000 |
Chamber Material |
/ |
/ |
/ |
/ |
SUS304 |
SUS304 |
Working Pressure |
0.22MPa |
0.22MPa |
0.22MPa |
0.22MPa |
0.217MPa |
0.217MPa |
Max. Working Pressure |
0.23MPa |
0.23MPa |
0.23MPa |
0.23MPa |
0.23MPa |
0.23MPa |
Designed Temperature |
134°C |
134°C |
134°C |
134°C |
138°C |
138°C |
Working Temperature |
105-134°C |
105-134°C |
105-134°C |
105-134°C |
50-134°C |
50-134°C |
Temperature Holding Range |
/ |
/ |
/ |
/ |
50-100°C (Programmable) |
|
Temperature Display Accuracy |
±1°C |
±1°C |
±1°C |
±1°C |
±0.1°C |
±°C |
Timer |
0-99h |
0-99h |
0-99h |
0-99h |
0-99h |
0-99h |
Basket |
/ |
/ |
/ |
/ |
3 pcs |
4 pcs |
Power Supply |
220V 50Hz |
220V 50Hz |
220V 50Hz |
220V 50Hz |
380V 50Hz, 220V 50/60Hz |
|
Power Consumption |
2.5KW |
3KW |
4.5KW |
4.5KW |
6KW |
6KW |
Overall Dimension (WxDxH) mm |
450x450x1010 |
510x470x1130 |
560x560x1120 |
540x560x1250 |
650x650x1400 |
650x650x1700 |
Package Dimension (WxDxH) mm |
570x550x1150 |
590x590x1280 |
650x630x1280 |
680x630x1370 |
800x760x1530 |
800x760x1720 |
Net / Gross Weight (KG) |
56 / 72 |
68 / 88 |
80 / 100 |
85 / 110 |
213 / - |
238 / - |
