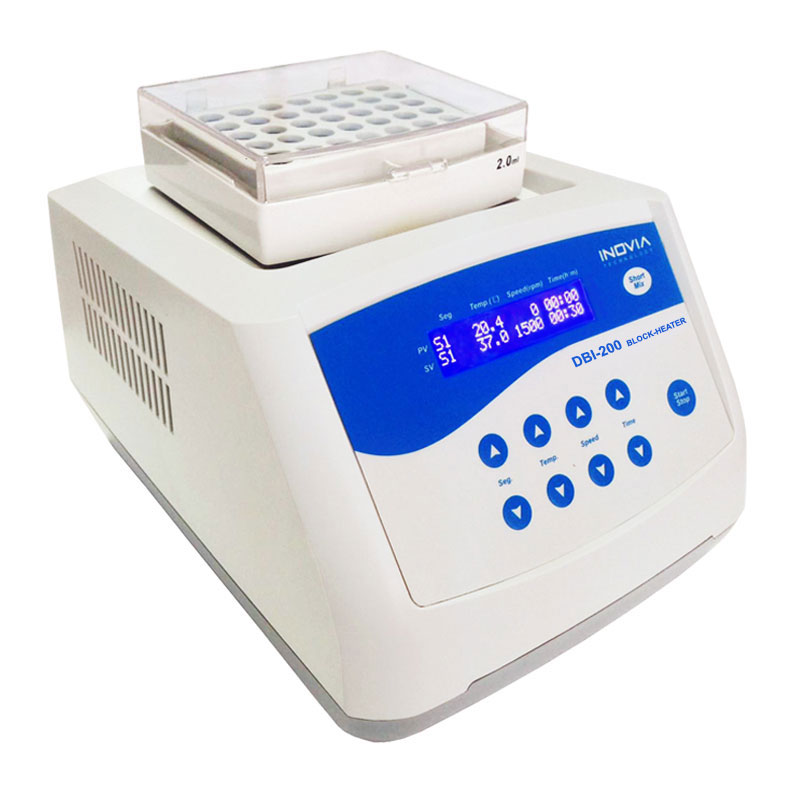

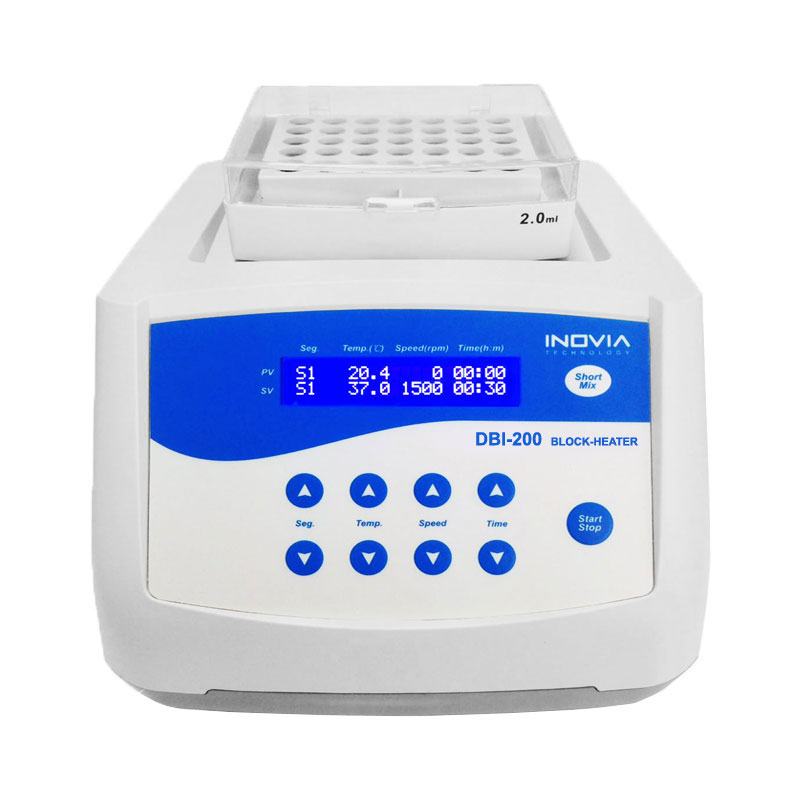

Microprocessor-controlled DBI Series Dry Wash Incubators utilize an advanced thermoelectric control system with many advantages.
With this technique, it is more stable and a heat control is possible.
With many different metal sample blocks, the device can be adapted to a variety of sample types and different conditions.
Features;
1. LCD display with easy-to-use features.
2. Simultaneous Visualization: Set and current time, temperature.
3. It provides multi-purpose usage with its temperature deflection feature.
4. It is possible to use many different types of blocks and can operate with many types of tubes and microplates. So, almost all kinds of experimental needs of the user are met. These blocks can be mounted very comfortably.
5. Blocks can be specially produced and adapted.
6. Microprocessor controlled incubation time and temperature control.
7. Warning signal and auto-off feature at the end of the program.
8. More efficient operation with Peltier designed system.
Normal Operating Condition;
Ambient Temperature: 5°C - 30°C
Relative Humidty: ≤70%
Power Supply: AC 200/240V - 50/60Hz
Technical Specifications;
| Model | DBI-100 | DBI-200 |
| Temperature Control Range | RT+5°C~100°C | -10°C - 100°C |
| Timing Range | 1min - 99h59min | 1min - 99h59min |
| Temp. Control Accuracy | ±0.5°C | ±0.5°C |
| Display Accuracy | ±0.1°C | ±0.1°C |
| Heating Time(25 to 100°C) | ≤12min | ≤15min |
| Cooling Time(20 to -10°C) | ---- | ≤15min (*) |
| Heating Part | Heater | Peltier |
| Cooling Part | ---- | Peltier |
| Certificate | CE | CE |
| Dimension(mm) | 300 x 220x 180 | 300 x 220x 180 |
| Net Weight | 2.5kg | 5kg |
Block Types;
| Type | Capacity | Max. Temperature | Min. Temperature |

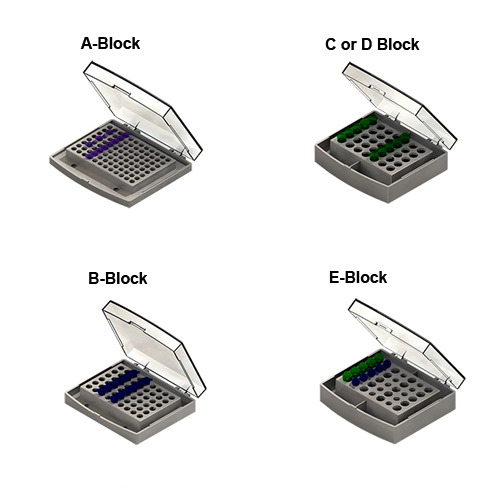

| A-Block | 96x0.2ml | 100°C | -10°C |
| B-Block | 54 x 0.5ml | 100°C | -10°C |
| C-Block | 35 x 1.5ml | 100°C | -10°C |
| D-Block | 35 x 2.0ml | 100°C | -10°C |
| E-Block | 15 x 0.5ml + 20 x 1.5ml | 100°C | -10°C |

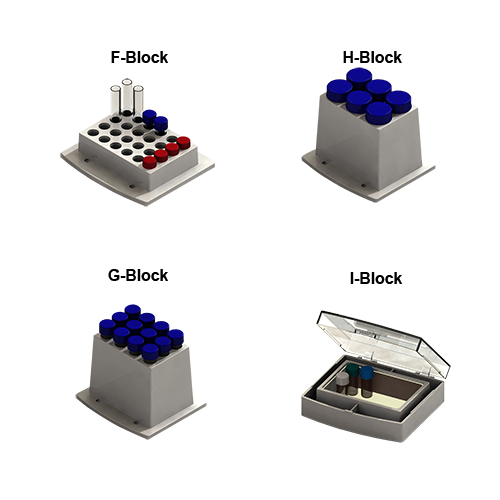

| F-Block | 24 x Diameter ≤12mm | 100°C | 0°C |
| G-Block | 12 x 15ml | 100°C | 0°C |
| H-Block | 6 x 50ml | 100°C | 0°C |
| I-Block | 103 x 67 x 30mm Bath Block | 100°C | 0°C |

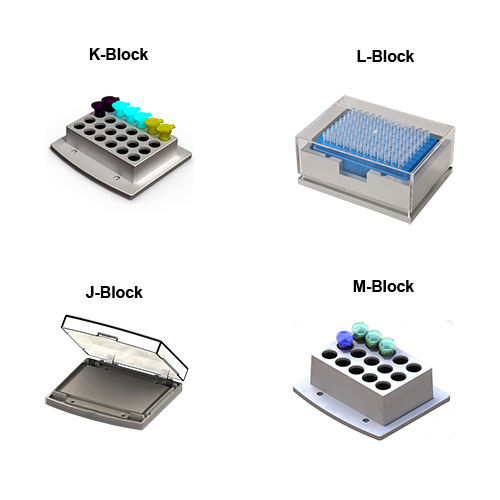

| J-Block | 96 x 0.2ml Microplate | 100°C | 0°C |
| K-Block | 24 x 5ml | 100°C | 0°C |
| L-Block | 96-Deep Well Plate | 80°C | 8°C |
| M-Block | 15 x 5ml Eppendorf Tubes | 100°C | 0°C |
