INOAClave Series General Features:
1. Fully compliance to EN13060 B standard, 3 times pulsating vacuum. Vacuum can down to -80Kpa.
2. Large LCD Screen display, easy to operate.
3. Automatically detect door status, make operation more safety.

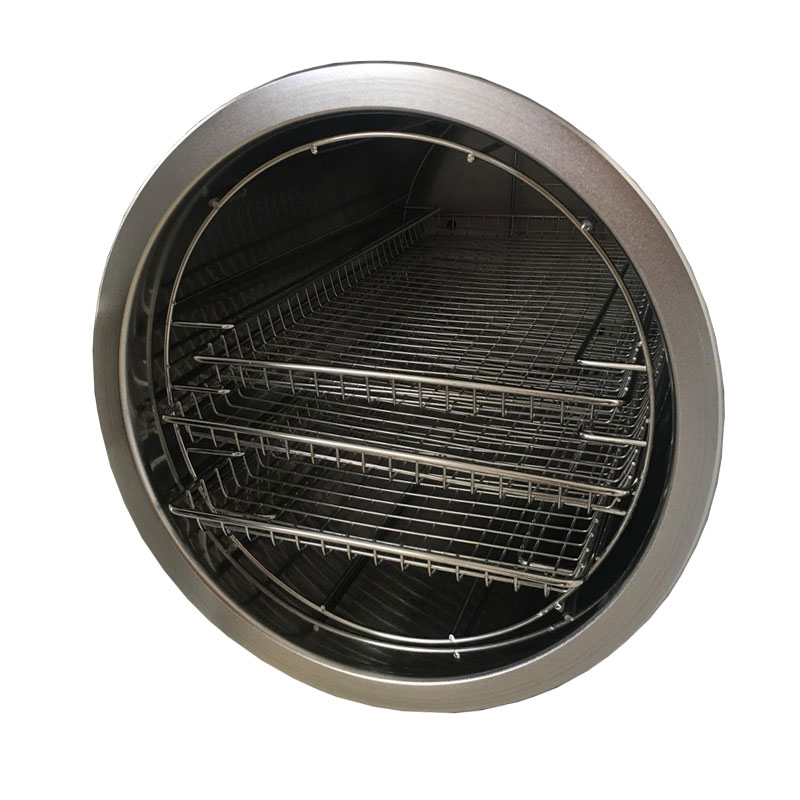

4. 2.5mm Deep-stretched shape high quality stainless steel internal bladder.
5. Built-in cleaning and sewage equipment. Automatic alarm when water shortage or full.
6. Built-in printer to print the sterilization data.
7. Short-circuit protection, Fuse tube: T15AL ~250V
8. Storage tank capacity: 2 liters.
9. Required water for each loop: 0.3 liters.
10. Minimum alarm level of water tank: 0.5 liters.
11. Sterilization (pressure/temperature):
90~130KPa/121℃ (Standard atmospheric pressure)
200~230KPa/134℃(Standard atmospheric pressure)
Technical Specification:
Model | INOAClave-B12 | INOAClave-B16 | INOAClave-B18 | INOAClave-B23 |
Capacity (Lt) | 12 | 16 | 18 | 23 |
Chamber Size | φ200*360mm | φ230*350mm | φ250*350mm | φ250*450mm |
Outside Size | 560*450*410mm | 680*450*410mm | ||
Packing Size | 650*520*520mm | 780*520*520mm | ||
Weight | 50/55KG |
