High-Efficiency Compressor: Engineered for energy savings and high-performance cooling with a low-noise profile and extended operational lifespan.
Advanced Vacuum System: Compact vacuum pump offering rapid pumping speeds and minimal noise while achieving superior ultimate vacuum levels.
Integrated Compact Design: Features a streamlined, space-saving structure for maximum durability and user-friendly operation.
Eco-Friendly Cooling: Utilizes environmentally sustainable refrigerants with zero Ozone Depletion Potential (ODP=0).
Automated Defrost Function: Equipped with a dedicated defrosting system to ensure safe, reliable, and continuous performance.
Premium Stainless Steel Construction: Both the cold trap and work surface are crafted from high-grade stainless steel for maximum corrosion resistance and effortless cleaning.
Aviation-Grade Drying Chamber: The transparent chamber cover is made from high-strength aviation acrylic, ensuring a seamless, high-pressure resistant, and non-bonded finish.
Integrated Pre-Freezing: Large-capacity cold trap opening with built-in pre-freezing functionality, eliminating the need for additional low-temperature freezers.
Advanced Gas Diversion Technology: Optimized vapor flow management for high freeze-drying efficiency and uniform ice sublimation/capture.

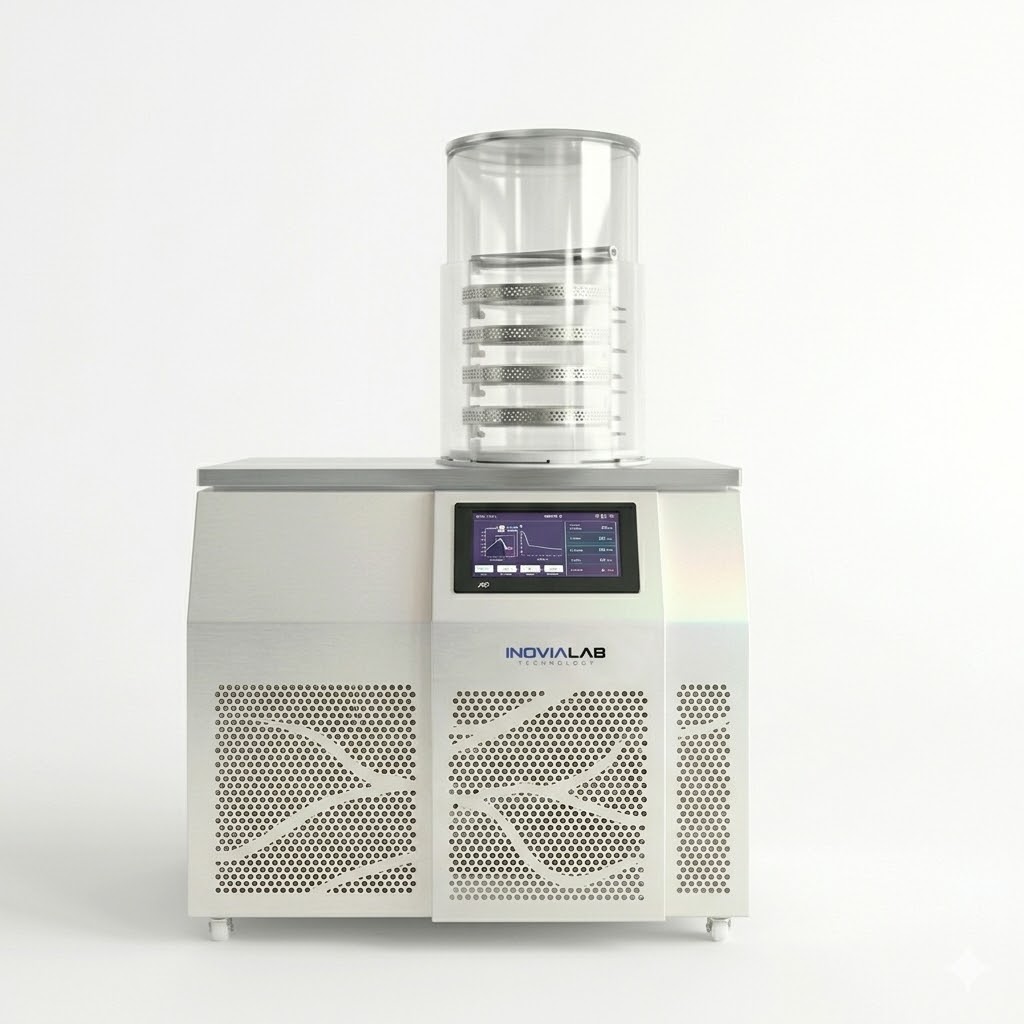

| Feature | FD100-S (Standard) | FD100-P (8 Port Manifold) | FD100-T (Stoppering) | FD100-PT (Stoppering + 8 Port) |
| Drying Type | Standard Chamber | Standard + 8 Ports | Stoppering Chamber | Stoppering + 8 Ports |
| Freeze Drying Area | 0.12 m² | 0.12 m² | 0.08 m² | 0.08 m² |
| Number of Trays | 4 pcs | 4 pcs | 3 pcs | 3 pcs |
| Tray Size (Diameter) | Φ 200 mm | Φ 200 mm | Φ 180 mm | Φ 180 mm |
| Height Between Trays | 50 mm | 50 mm | N/A (Mechanical) | N/A (Mechanical) |
| Vial Capacity (Φ22) | - | - | 147 pcs | 147 pcs |
| Loading Cap./Shelf (Liq.) | 1.2 L | 1.2 L | 0.8 L | 0.8 L |
| Total Loading Cap. (Liq.) | 2.4 L | 2.4 L | 1.6 L | 1.6 L |
| Water Capture Capacity | 3~4 kg / 24h | 3~4 kg / 24h | 3~4 kg / 24h | 3~4 kg / 24h |
| Vacuum Degree | ≤ 5 Pa | ≤ 5 Pa | ≤ 5 Pa | ≤ 5 Pa |
| Cold Trap Temp. | ≤ -60℃ (-80℃ Opt.) | ≤ -60℃ (-80℃ Opt.) | ≤ -60℃ (-80℃ Opt.) | ≤ -60℃ (-80℃ Opt.) |
| Drying Chamber Size | Φ 260 * 420 mm | Φ 260 * 420 mm | Φ 260 * 465 mm | Φ 260 * 465 mm |
| External Dim. (WDH) | 640610550 mm | 640610550 mm | 640610550 mm | 640610550 mm |
