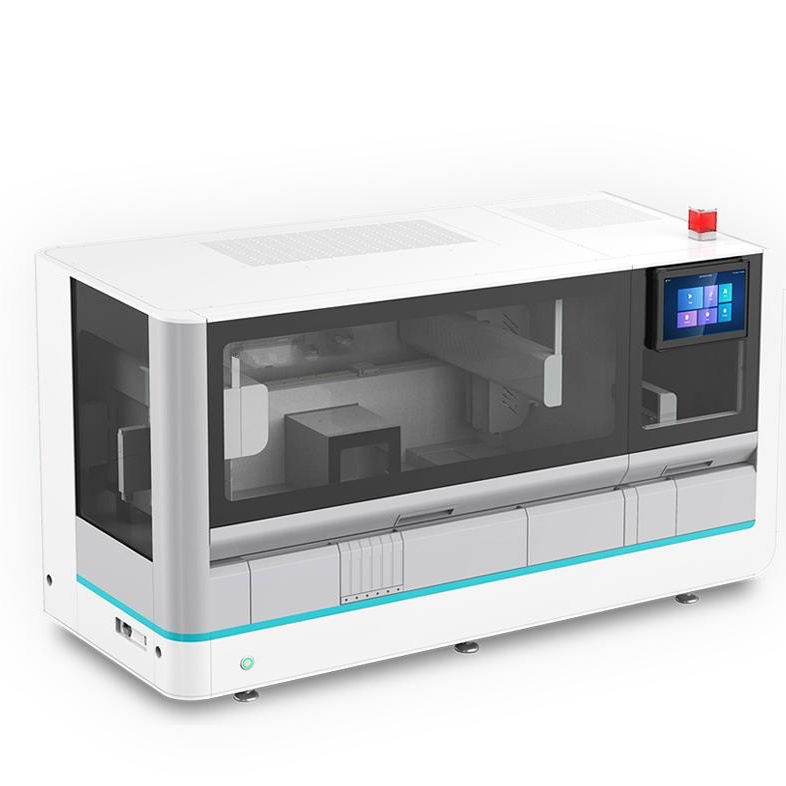

INO-AutoPCR-AS1 Fully Automated PCR Analyse System

Name: INO-AutoPCR-AS1 Fully Automated PCR Analyse System
Brand: INOVIALAB

INO-AutoPCR-AS1 is a molecular analysis system designed to manage the workflow from nucleic acid extraction through PCR analysis on a single automated platform. It combines sample preparation and analysis within an integrated workflow.

The system provides an automated workflow for DNA and RNA testing, real-time PCR, molecular diagnostics, genetic research, microbiology and biotechnology applications.

Key Features

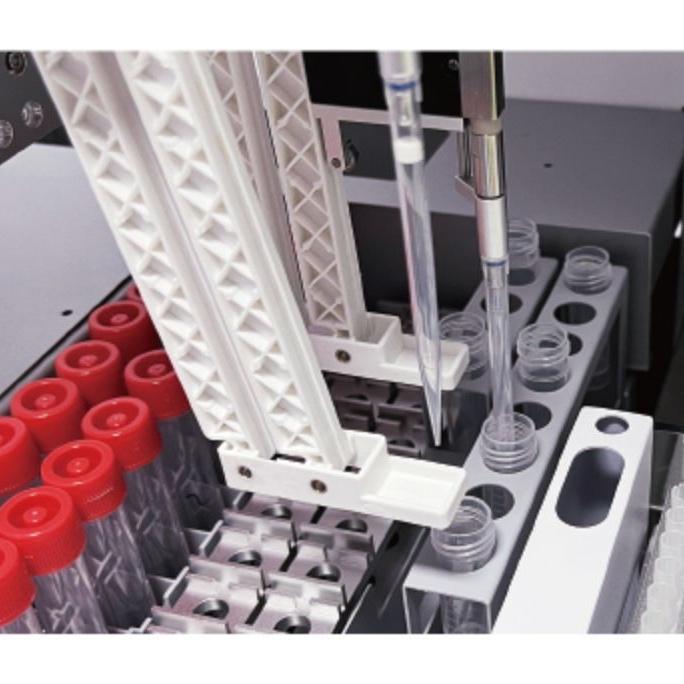

Automated nucleic acid extraction
Real-time PCR analysis
DNA and RNA based workflows
Magnetic bead based extraction
Multi-channel fluorescence detection
Integrated molecular analysis workflow

Applications

Molecular diagnostics, genetic analysis, DNA and RNA testing, PCR applications, microbiology, biotechnology and research laboratories.

Features Order Form Documents Product Video

Feature	Technical Specification
Throughput	1~64 samples
Sample Tube	Supports direct loading of sample tubes / blood collection tubes
Extraction Temperature	37 °C~120 °C
Extraction Temperature Accuracy	±0.5 °C
Extraction Time	Depending on the reagent solution, typically 25~30 minutes per run
Extraction Uniformity	CV≤5%
PCR Average Heating Rate	Block 50 °C~95 °C: ≥5 °C/s
PCR Maximum Heating Rate	Block 50 °C~95 °C: ≥10 °C/s
PCR Average Cooling Rate	Block 95 °C~50 °C: ≥5 °C/s
PCR Maximum Cooling Rate	Block 95 °C~50 °C: ≥8 °C/s
PCR Temperature Accuracy	≤±0.2 °C
Block Temperature Control Accuracy	≤±0.2 °C at 55 °C
PCR Heated Lid	Temperature range: RT +5 °C~105 °C
PCR Heated Lid Accuracy	±0.5 °C
PCR Reaction Volume	15~100 μL
Fluorescence Detection Channels	5 channels
Compatible Fluorescent Dyes	FAM / HEX / ROX / CY5 / CY5.5, etc.
PCR Kinetic Range	1~10¹⁰ Copies/μL
Detection Time	Depending on the reagent solution, typically 35~50 minutes per run
UV Sterilization	Independently controlled UV sterilization lamps in the sample preparation, buffer and analysis areas
HEPA Filtration	Independent HEPA filtration components in the sample preparation and analysis areas
Software Operation	Windows-based software with support for customized functions
Instrument Ports	1× B-USB port and 1× Ethernet port
Information Management	External barcode scanner support for sample/reagent information entry; expandable LIS and cloud database connectivity
