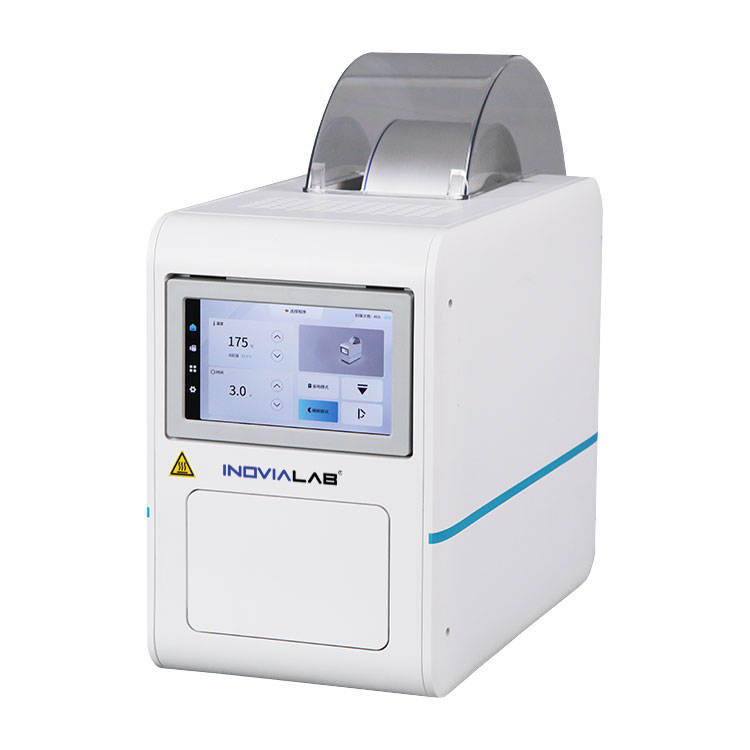

InoSealer-1A Automated Plate Sealer



The InoSealer-1A automatic heater plate sealer is a device for rapid and continuous sealing of microplates.

It can be adapted to ANSI, SBS standard 12-well, 24-well, 48-well, 96-well and 384-well plates, in the height range of 3-62 mm, including all types of PCR plates, ELISA plates, deep-wells.

Well plates, cell culture plates, etc. Supports the use of 78mm punchable roll film, aluminum foil roll film and strong heat seal roll film.

It is suitable for prefilling biochemical reagents, sealing film before PCR tests, long-term storage of samples, and other experimental applications that require capping reagents.



> RT - 200°C free adjustment to meet the needs of different film sealing applications.

> Internal independent air supply. You don't need to connect any other equipment.

> Automatic pre-loading of the film ensures continuous operation.

> Sealing cycle time: <20sec.

> The graphical interface is easier to use thanks to the use of touch screen.

> Standard roll film protection cover to prevent contamination of the film surface.

> Program storage function to save different types of film parameters for quick recall.





Technical Specifications





Model

InoSealer-1A

Supported Plates

ANSI / SBS standard plate, height range 3-62mm

Suppot Roll Film / Film Type

Puncturable film / Aluminum foil film / Strong heat sealing film

Support Roll Film / Film Width

78mm

Support Roll Film / Loading Method

Automatic preloading of roll film

Film Sealing Temperature

Temperature Range

RT - 200°C

Film Sealing Temperature

Temperature Control Accuracy

±1°C

Film Sealing Temperature

Accommodative Amplitude

1°C

Pre-Heating Time

5min

Cycle Time

<20 seconds/time

Adjustable Film Sealing Time

Time Range

0.5-9.9 seconds

Adjustable Film Sealing Time

Accommodative Amplitude

0.1 seconds

Air Source Method

Built-in air source

Port

1xUSB-B Port and 1xEthernet Port

Software Operation

7" Touch Screen Software (Resolution 1024*600)

Edit sealing scheme / Prestored sealing scheme

Safety

Standby function (low power mode),  Detection of plate and roll film

Power Supply

AC 100/240V, 50/60Hz, 300W
